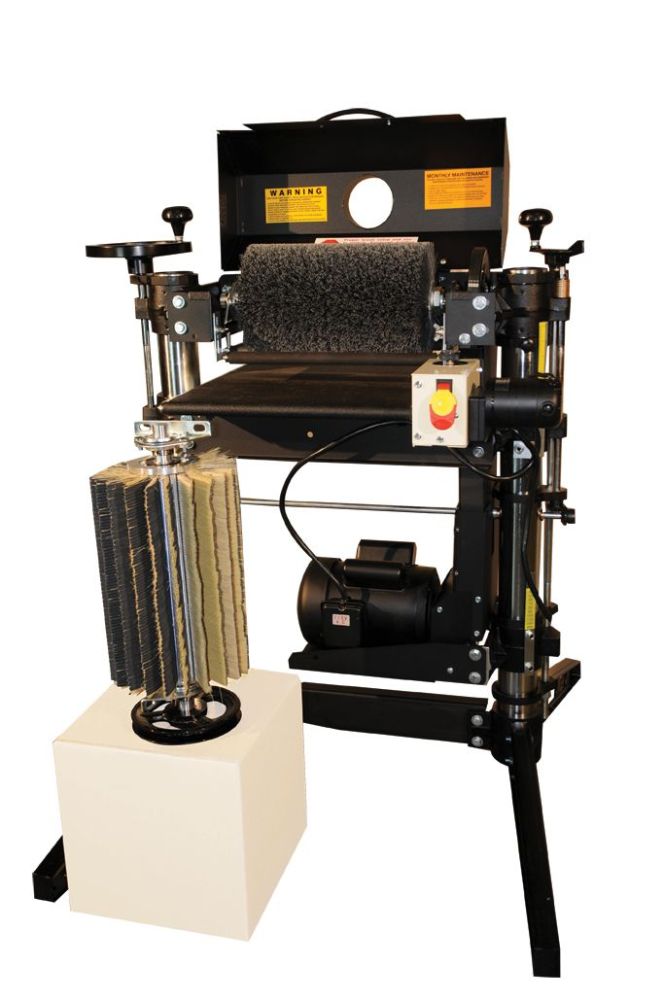

The 13″ Combination Brush/Drum Sander is the answer to your production bottleneck. Developed with moldings in mind, this versatile sander can tackle every step in your finishing process, from sanding raw wood to sanding between coats of stain or primer.
This model features a 1-3/4 HP motor and can handle stock up to 4″ thick, or as thin as 1/32″. It can also be equipped with an optional sanding drum for surface sanding.
Features
- Infinitely variable brush speed and conveyor feed rate
- Optional drum for surface sanding
- Quickly change brush heads or abrasive loadings
- Fully adjustable tension rollers prevent stock slippage
- Reinforced steel conveyor bed with a poly conveyor belt
- Precision height adjustment
- Bristle Contact Gauge included
Sanding Capacity
- Maximum Width - 13″
- Minimum Length - 9″
- Maximum Thickness - 4″ (varies with drum/brush style)
- Minimum Thickness - 1/32″
- Dimensions (W × L × H) - 42″ × 35″ × 44″
Machine Specs
- Drum - 5″ × 13″ Extruded Aluminum
- Brush - 6-8″ Typical Diameter
- Speed - Ranged Variable RPM, 400–1200
- Dust Hood - 1–4″ Port, Hinged at Back, 600 CFM Min. Recommended
- Conveyor Motor - 43 in.-lb. Torque, Ranged Variable, 0–10 FPM
- Drive Motor (TEFC) - 1-¾ HP
- Power Requirements - 110 Volt, 20 Amp Service
- Shipping Weight - 300 lbs (Approx, Varies Based on Configuration)
- Shipping Dimensions (L × W × H) - 34-½″ × 45-½″ × 46-½″
| Trades | Woodworking |
|---|---|
| Brand | Laguna |
| Voltage | 110 V |
| Sizes | 13" |
| Tool Type | Wood |
| Power | Single Phase |
