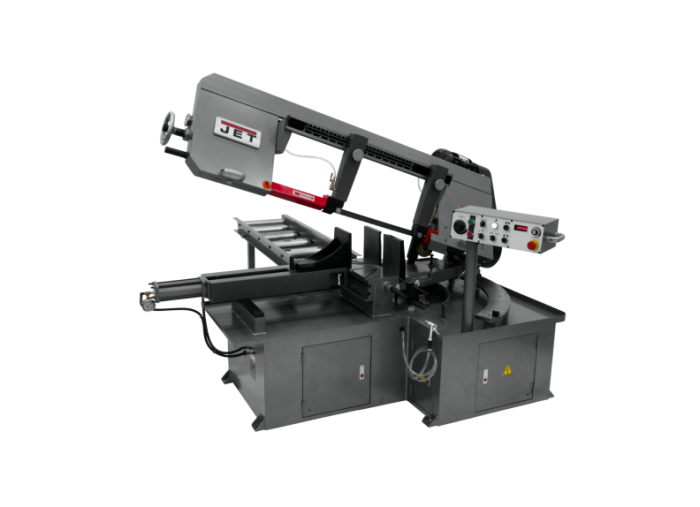

Jet Semi-Automatic Dual Mitering Bandsaw 3HP 230V, 3-Ph | MBS-1323EVS-H JT9-413412
JET Dual Mitering Horizontal bandsaws' unique design head dual miters both left and right for quick angle cuts. The Frequency Inverter, unique to this saw, allows this EVS saw a full range of blade speeds. The saw comes with an automatic blade breakage sensor that detects accidental breakage and interrupts the power as well as an automatic shut off switch to stop the sawing process. To ensure operator safety, the blade is fully guarded.
Features
- Adjustable Material Stop
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Built-in, self-propelled blade brush prevents chip build up in blade guides
- Heavy Duty construction
- Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
- Hydraulic Vise for rapid clamping of material on 13" saw
- Integrated pressurized wash hose for easy machine clean up
- Magnetic starter for low voltage and lost phase protection
- Semi-automatic bow raises after cut to predetermined height
Specifications
- Stock Number: JT9-413412
- Bed Height (In.): 27.75
- Blade Wheel Diameter (In.): 16
- Drive: EVS
- Model Number: MBS-1323EVS-H
- Motor (HP): 3 HP, 230V, 3-Phase
- Overall Dimensions (L x W x H) (In.): 88 x 55 x 51
- Prewired Voltage (V.): 230
- Prop 65: Cancer and Reproductive Harm
- Rectangle at 90 Degrees (In.): 12 x 23-1/2
- Round at 45 Degrees (In.): 13
- Round at 60 Degrees (In.): 11
- Round at 90 Degrees (In.): 13
- Warranty: 2 Year
- Gross Weight: 2090.0
- Net weight: 1826.0
| Brand | Jet |
|---|
