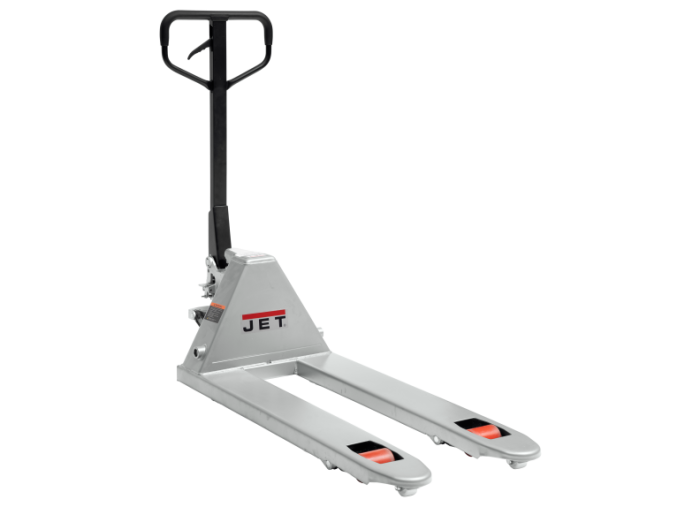

JET PTW Series Pallet Trucks are available in 5 different configurations. Each JET PTW Pallet Truck has a low profile of less than 3 inches, varying widths of 20 to 27 inches, and different lengths from 36 to 48 inches. High quality welded steel construction gives the PTW series a capacity of 6,000 pounds. The 200 degree turning radius increases maneuverability and the easy-to-use fingertip controls permit single handed operation. JET PTW Series Pallet Trucks are built to handle heavy lifting.
Features
- Lower material in a controlled decent with either hand or foot control for operator convenience
- Overload Protection prevents lifting loads past maximum capacity
- Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling
- Pump designed so that cylinder will not extend beyond maximum height
- Pumps designed for any industrial environment
Specifications
- Stock Number: JT9-141171
- Capacity (Lbs.): 6600
- Fork Width (In.): 6-1/4
- Load Wheel Size (OD x W) (In.): 2-7/8 x 3-11/16
- Lowered Height (In.): 2.95
- Maximum Height (In.): 7-1/2
- Model Number: PTW-2042B
- Overall Dimensions (L x W x H) (In.): 57 x 50-1/2 x 48
- Overall Fork Dimensions (L x W) (In.): 42 x 20-1/2
- Prop 65: Cancer and Reproductive Harm
- Steer Wheel Size (In.): 6-1/4 x 2
- Turning Radius (Deg): 200
- Warranty: Limited
- Gross Weight: 147.0
- Net weight: 142.0
| Brand | Jet |
|---|---|
| Sizes | 20.5x"42" |
| Warranty | Limited |
