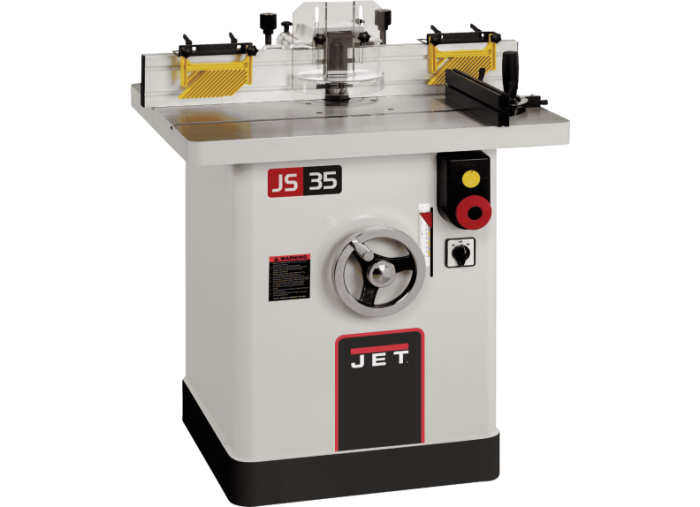

Jet JWS-35X5-1 Industrial Shaper 5HP 1Ph JT9-708326

Features

• 4" Dust port built into fence for convenient hookup to any dust collection system
• Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
• Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters
• Large 26-3/4” x 32-1/4” precision-ground cast iron table provides a durable work area and is predrilled for power feeder
• Poly-V-belt transfers maximum power to the spindle
• Powerful 5HP, 1Ph motor with magnetic controls
• Reversible spindle speeds for diverse shaping jobs
• Starting Pins for irregular shaping
• V-belt transfers maximum power to the spindle

Specifications

• Stock Number: JT9-708326
• Dust Collection Minimum CFM Required (CFM): 600
• Dust Port Outside Diameter (In.): 4
• Maximum Spindle Diameter (In.): 1-1/4
• Model Number: JWS-35X5-1
• Motor Amps: 17
• Motor Power (HP): 5
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Spindle Size Under Nut (In.): 4
• Spindle Travel (In.): 4
• Table Height from Floor (In.): 33-1/4
• Table Inserts (In.): 2
• Table Opening Diameter (In.): 6-19/64
• Table Size (L x W) (In.): 32-1/4 x 26-3/4
• Warranty: 5 Year
• Gross Weight: 550.0
• Net weight: 473.0
