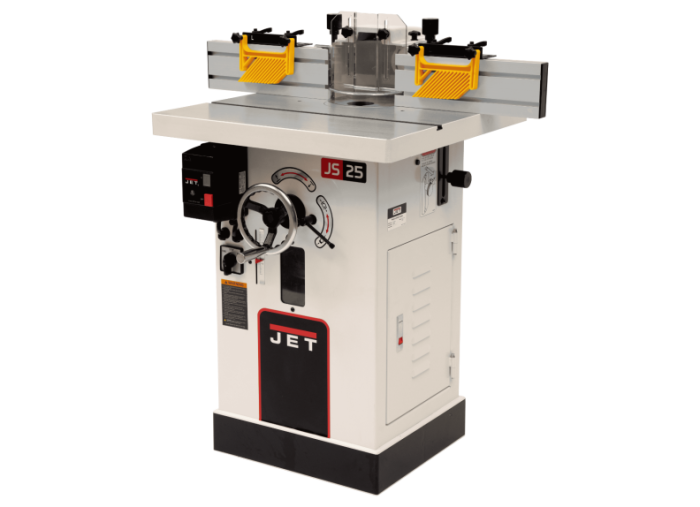

The new model JWS-25X Shaper features a powerful 3HP motor with magnetic controls. The large 25”x 25-1/2” precision ground cast iron table provides plenty of support. Safe, easy cutter set up is assisted by a positive detent spindle lock. The independently adjustable left and right fence has a built in 4” dust port.
Specifications
- Stock Number: JT9-708309
- Dust Collection Minimum CFM Required (CFM): 600
- Dust Port Outside Diameter (In.): 4
- Model Number: JWS-25X
- Motor Amps: 16
- Motor Power (HP): 3
- Motor Voltage (V.): 230
- Prewired Voltage (V.): 230
- Prop 65: Cancer and Reproductive Harm
- Recommended Circuit Size (Amps.): 30
- Spindle Travel (In.): 3-1/2
- Table Height from Floor (In.): 33
- Table Inserts (In.): 2
- Table Opening Diameter (In.): 6-9/32
- Table Size (L x W) (In.): 25-1/2 x 25
- Warranty: 5 Year
- Gross Weight: 381.0
- Net weight: 331.0
Features
- Extra large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Reversible spindle speeds for diverse shaping jobs
- Spindle lock for safe and easy cutter set up
- Starting Pins for irregular shaping
- Two-speeds let you select the best speed and torque for different cutter diameters
- V-belt transfers maximum power to the spindle
| Brand | Jet |
|---|---|
| Warranty | 5 Year |
| Power | Single Phase |
