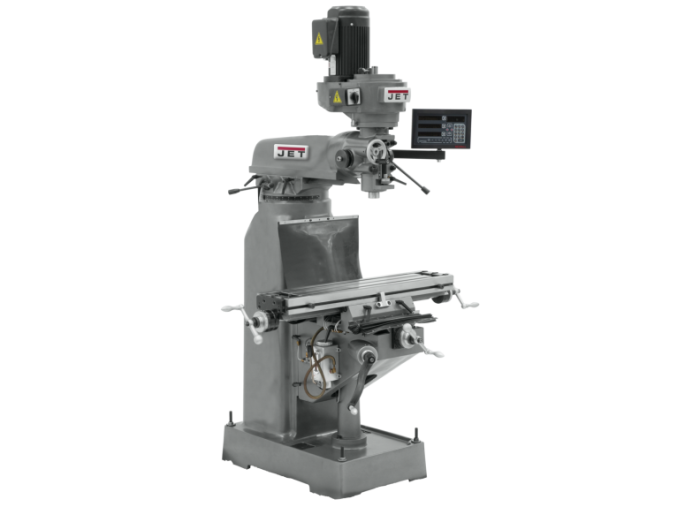

The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty
Features
- Graduated scale on column
- Hardened and ground precision table
- Head tilts left or right
- High precision spindle bearings
- Large Diameter quill is chromed
- One shot lubrication system
- Precision bored and honed milling head
- Precision ground dovetail ways
Specifications
- Stock Number: JT9-691180
- Collet Capacity: 1/8 - 7/8
- Distance Spindle to Column (Max.) (In.): 15-3/4
- Max Distance Spindle to Table (In.): 13-3/4
- Model Number: JVM-836-3
- Motor (HP): 1-1/2 HP, 230V Only, 3Ph
- Number of Axis: 2
- Number of Spindle Speeds: 10
- Overall Dimensions (L x W x H) (In.): 55 x 52 x 78
- Powerfeed: X-Axis
- Prop 65: Cancer and Reproductive Harm
- Quill Diameter (In.): 3-3/8
- Quill Down Feed Rates (IPR): .0015 - .003 - .006
- Range of Spindle Speeds (RPM): 120 - 1,550
- Spindle Taper (In. x TPI): R-8
- Spindle Travel (In.): 5
- Style (Type): Step Pulley R8
- T-Slot Centers (In.): 2-1/2
- Table Cross Travel (In.): 9-1/2
- Table Longitudinal Travel (In.): 22-1/4
- Table Longitudinal Travel With Powerfeed (In.): 18
- Table Size (L x W) (In.): 7-7/8 x 35-3/4
- Travel of Knee (In.): 14
- Travel of Ram (In.): 10-1/2
- Warranty: 2 Year
- Work Table Weight Capacity (Lbs.): 500
- Gross Weight: 1630.0
- Net weight: 1630.0
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
