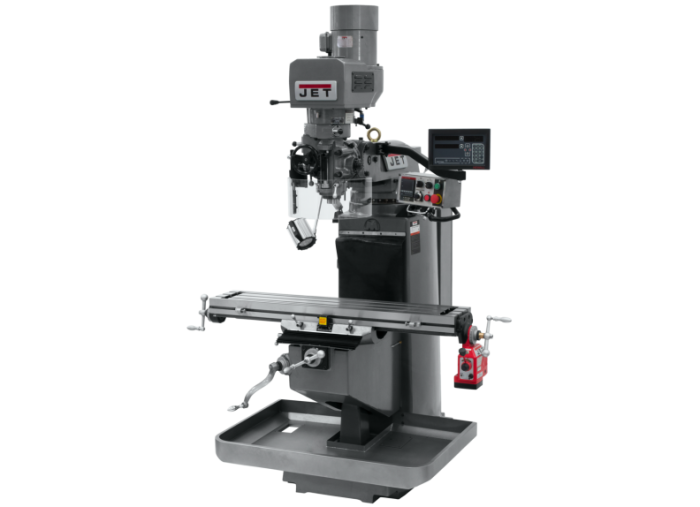

Jet JTM-949EVS Mill With 3-Axis Newall DP700 DRO (Quill) With X-Axis Powerfeed JT9-690545

Features

• Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
• Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
• Dual locks on all moveable surfaces
• Spindle head is internally cooled extending bearing, belt and motor life
• Swing away control box houses an e-stop and puts all controls at the operators fingertips
• Swing away safety shield
• Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
• The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
• The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
• The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements

Specifications

• Stock Number: JT9-690545
• Collet Capacity: 1/8 - 7/8
• Column Width (In.): 18
• Distance Spindle to Column (Max.) (In.): 18-1/8
• Inverter Type: Delta, B
• Max Distance Spindle to Table (In.): 20-3/4
• Model Number: JTM-949EVS/230
• Motor (HP): 3HP, 230V, 3Ph
• Number of Axis: 3 (Quill)
• Overall Dimensions (L x W x H) (In.): 67 x 64 x 86
• Powerfeed: X-Axis
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Range of Spindle Speeds (RPM): 60 - 4,500
• Saddle Width (In.): 11-1/2
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 5
• Style (Type): EVS
• T-Slot Centers (In.): 2-1/2
• Table Cross Travel (In.): 12-5/8
• Table Longitudinal Travel (In.): 36
• Table Longitudinal Travel With Powerfeed (In.): 30-3/4
• Table Size (L x W) (In.): 9 x 49
• Travel of Knee (In.): 15-3/4
• Travel of Ram (In.): 15-1/4
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 720
• Gross Weight: 2420.0
• Net weight: 2420.0
