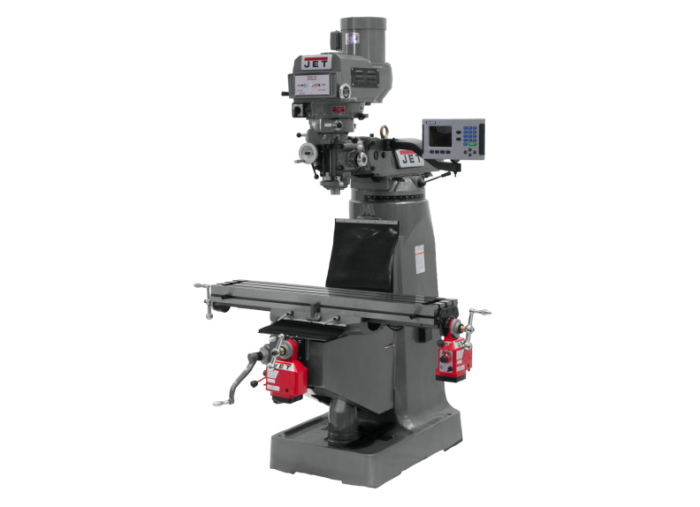

Jet JTM-4VS Mill With ACU-RITE 203 DRO With X and Y-Axis Powerfeeds JT9-690098

Features

• Adjustable gibs throughout
• Heavy duty splined motor drive
• Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• One shot lubrication system
• Precision hardened and ground ways and table
• Spindle head is internally cooled
• Tolerance test sheet included

Specifications

• Stock Number: JT9-690098
• Collet Capacity: 1/8 - 7/8
• Distance Spindle to Column (Max.) (In.): 19
• Max Distance Spindle to Table (In.): 17-1/2
• Model Number: JTM-4VS
• Motor (HP): 3 HP, 230/460V, 3Ph
• Number of Axis: 2
• Overall Dimensions (L x W x H) (In.): 66 x 63 x 85
• Powerfeed: X and Y-Axis
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Range of Spindle Speeds (RPM): 60 - 4,200
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• T-Slot Centers (In.): 2-1/2
• Table Cross Travel (In.): 12
• Table Longitudinal Travel (In.): 34
• Table Longitudinal Travel With Powerfeed (In.): 28-3/4
• Table Size (L x W) (In.): 9 x 49
• Travel of Knee (In.): 14-1/2
• Travel of Ram (In.): 13-3/8
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 660
• Gross Weight: 2420.0
• Net weight: 2420.0
