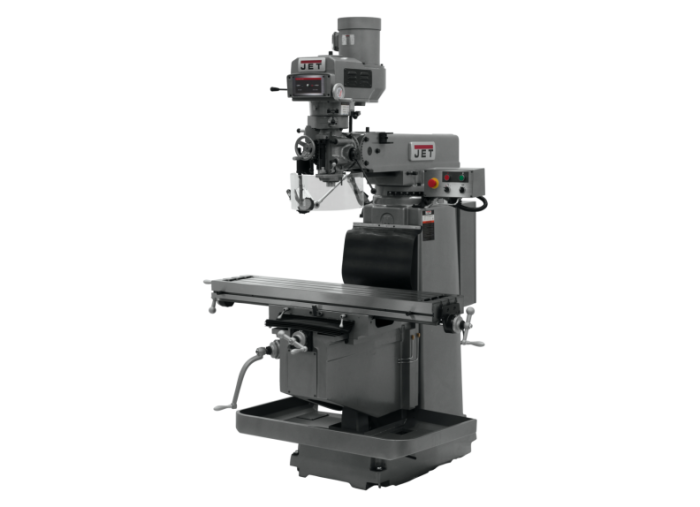

Jet JTM-1254RVS Variable Speed Vertical Mill Machine 230/460V, 3Ph JT9-690020

Features

• Adjustable gibs throughout
• Dual locks on all moveable surfaces
• Heavy-duty spindle brake
• Precision bored and honed milling head
• Precision hardened and ground ways and table
• Spindle Brake for rapid stopping of the spindle
• Three Precision ground t-slots
• Three-stage power downfeed with automatic stop
• Two 115V outlets on electrical box for Powerfeeds only

Specifications

• Stock Number: JT9-690020
• Collet Capacity: 1/8 - 1
• Distance Spindle to Column (Max.) (In.): 27-3/4
• Max Distance Spindle to Table (In.): 23
• Model Number: JTM-1254RVS
• Motor (HP): 5HP, 230/460V, 3Ph
• Overall Dimensions (L x W x H) (In.): 92-1/8 x 79-7/8 x 104-1/4
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015–.003–.006
• Range of Spindle Speeds (RPM): 80 - 3,800
• Saddle Width (In.): 25-5/8
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• T-Slot Centers (In.): 2-1/2
• Table Cross Travel (In.): 15-1/3
• Table Longitudinal Travel (In.): 33-7/8
• Table Longitudinal Travel With Powerfeed (In.): 28-1/4
• Table Size (L x W) (In.): 12 x 54
• Travel of Knee (In.): 19-1/4
• Travel of Ram (In.): 25
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 925
• Gross Weight: 3969.0
• Net weight: 3260.0
