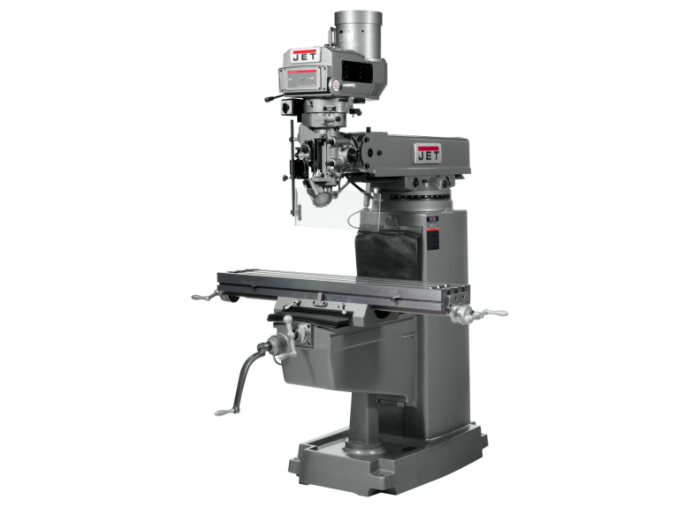

Jet JTM-1050VS2 Mill With 3-Axis Newall DP700 DRO (Quill) With X and Y-Axis Powerfeeds JT9-691209

Features

• Adjustable gibs throughout
• Chrome lead screws on X and Y axis
• Chrome-plated motor shaft with bearing support at end
• Hardened and ground square vertical knee ways and cross ways
• Heavy duty motor drive
• Internal coolant tank built into base for use with coolant system (Coolant pump not included)
• Large Diameter quill is chromed
• One shot lubrication system
• Spindle head is internally cooled
• Tolerance test sheet included

Specifications

• Stock Number: JT9-691209
• Collet Capacity: 1/8 - 7/8
• Distance Spindle to Column (Max.) (In.): 26
• Max Distance Spindle to Table (In.): 19
• Model Number: JTM-1050VS2
• Motor (HP): 3 HP, 230/460V, 3Ph
• Number of Axis: 3 (Quill)
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Powerfeed: X and Y-Axis
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 3-3/8
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Range of Spindle Speeds (RPM): 70 - 3,800
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 5
• Style (Type): Variable Speed R8
• T-Slot Centers (In.): 2-1/2
• Table Cross Travel (In.): 15-1/4
• Table Longitudinal Travel (In.): 35
• Table Longitudinal Travel With Powerfeed (In.): 29-3/4
• Table Size (L x W) (In.): 10 x 50
• Travel of Knee (In.): 14-1/4
• Travel of Ram (In.): 20-1/2
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 720
• Gross Weight: 2900.0
• Net weight: 2900.0
