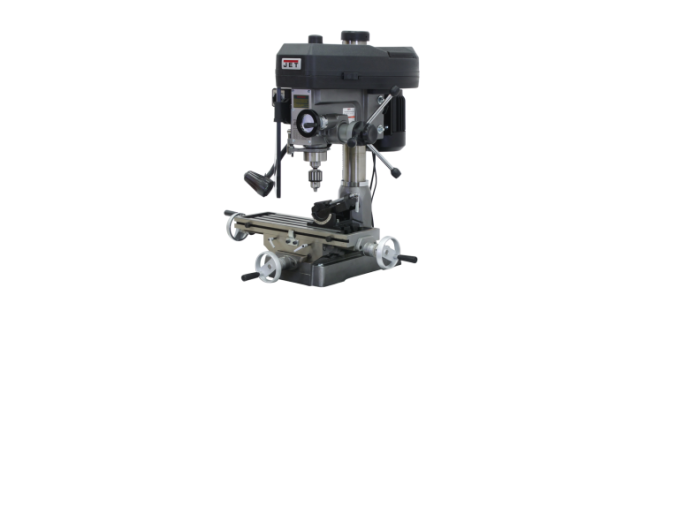

Jet JMD-15 Mill/Drill With NEWALL DP700 DRO JT9-350125-2

Features

• 1/2” Drill chuck, chuck arbor
• 360° head swivel
• Adjustable carbide facemill
• Base taper allows for easier clean up
• Easy to read external depth gauge
• Mill Drill Stand, p/n 320020, shown in some images, is optional
• One-piece cast iron column for added support
• UL Listed

Specifications

• Stock Number: JT9-350125-2
• Base Dimensions (In.): 12/1/2 x 19-3/4
• Column Diameter (In.): 3-5/8
• Drilling Capacity (In.): 1
• Max Distance Spindle to Table (In.): 14-1/2
• Model Number: JMD-15
• Motor (HP): 1 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 12
• Overall Dimensions (L x W x H) (In.): 38 x 37-1/2 x 42
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 2-7/16
• Range of Spindle Speeds (RPM): 110 - 2,580
• Spindle Taper (In. x TPI): R-8
• Spindle Travel (In.): 3-1/2
• Swing (In.): 14-1/2
• T-Slot Centers (In.): 1-13/16
• T-Slots Number and Size (In.): 4 and 9/16
• Table Longitudinal Travel (In.): 14
• Table Size (L x W) (In.): 7-1/2 x 23
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 350
• Gross Weight: 440.0
• Net weight: 440.0
