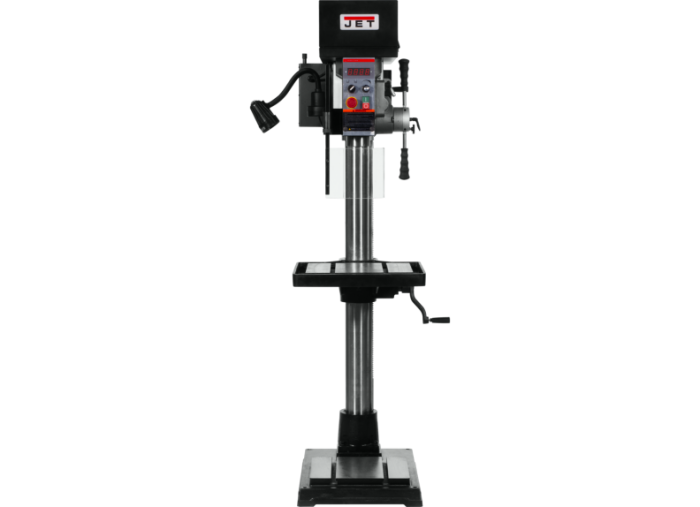

Jet JDPE-20EVS-PDF 20-Inch EVS Drill Press with Power Downfeed Step Pulley 2HP 1Ph 115V JT9-354250

Specifications

• Stock Number: JT9-354250
• Base Dimensions (In.): 17.7 x 25-1/2
• Base Work Table (In.): 14-3/16 x 13
• Column Diameter (In.): 4
• Distance Column to Spindle (In.): 26-1/2
• Drilling Capacity Cast Iron (In.): 1-1/4
• Drilling Capacity Mild Steel (In.): 1-1/8
• Drills to Center of Circle (In.): 10
• Inverter Type / Power Source: 2HP/115V/1PH
• Model Number: JDPE-20EVS-PDF
• Motor Amps: 4.6
• Motor (HP): 1.5HP, 230V, 3PH
• Motor Phase: 3
• Motor Power (HP): 1.5
• Motor Voltage (V.): 230
• Overall Dimensions (L x W x H) (In.): 32-3/5 x 22-2/3 x 70-25/64
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 2.16
• Range of Spindle Speeds (RPM): Low: 50 - 390, High 270 - 2000
• Spindle Distance to Base (In.): 48.85
• Spindle Distance to Table (Max.) (In.): 32.6
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel Auto (In.): 4-1/4
• Spindle Travel (In.): 5" Manual | 4-1/4" Auto
• Spindle Travel, Manual (In.): 5
• Style (Type): EVS
• Table Size (L x W) (In.): 16-1/2 x 18-1/2
• Tapping Capacity Mild Steel (In.): 3/4
• Warranty: 2 Year
• Gross Weight: 566.0
• Net weight: 477.0

Features

• Casted head for more accuracy and rigidity
• Emergency stop allows for immediate shut off
• Forward and reverse switch for instant tapping mode
• Front Mounted LED Spindle RPM Readout
• Heavy casted column prevents failures prolonging the life of the machine
• LED machine lamp delivers extra light for more precise drilling
• Speed changes using a clutch system
• Spindle guard protects user from flying debris
• Spindle power down feed system
