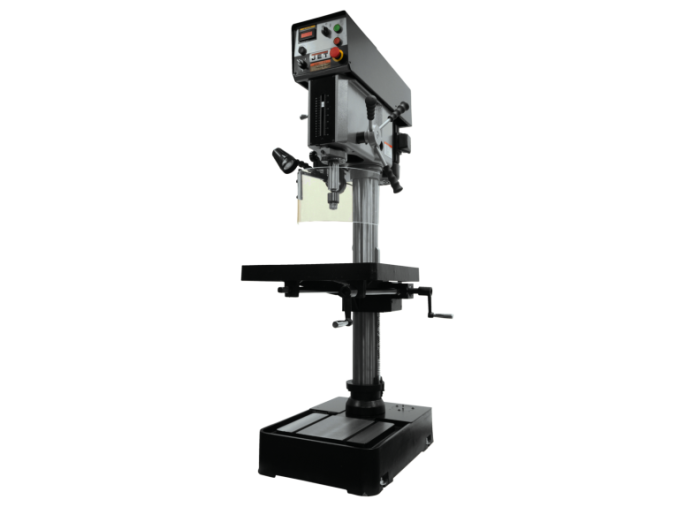

Jet JDP-20VST Variable Speed with Tapping 1-1/2 Drilling Capacity 2HP 230V 3Ph JT9-354240

Features

• CSA Coolant System
• Front Mounted LED Spindle RPM Readout
• Front mounted positive control depth stop
• Large Hand Grips designed with the users comfort in mind
• Large precision ground T-Slot production table for easy set ups
• Massive 3" quill diameter
• Table rotates 360° around the column
• Drill Chuck not included
• Tapping Capacity up to 3/4" in Mild Steel

Specifications

• Stock Number: JT9-354240
• Base Dimensions (In.): 27 x 19
• Column Diameter (In.): 4-1/2
• Drilling Capacity Cast Iron (In.): 1-1/2
• Drilling Capacity Mild Steel (In.): 1-3/8
• Drills to Center of Circle (In.): 20
• Model Number: JDP-20VST
• Motor (HP): 2HP, 230V,3ph
• Overall Dimensions (L x W x H) (In.): 38.18 x27.16 x 79.52
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Range of Spindle Speeds (RPM): 150 - 2,000
• Spindle Distance to Base (In.): 44-1/2
• Spindle Distance to Table (Max.) (In.): 30-1/4
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel (In.): 6
• Style (Type): Variable Speed
• Swing (In.): 20
• T-Slot Centers (In.): 7-7/16
• Table Size (L x W) (In.): 22x18-3/4
• Table Travel (In.): 20
• Tapping Capacity Cast Iron (In.): 3/4
• Tapping Capacity Mild Steel (In.): 5/8
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 154
• Gross Weight: 780.0
• Net weight: 780.0
