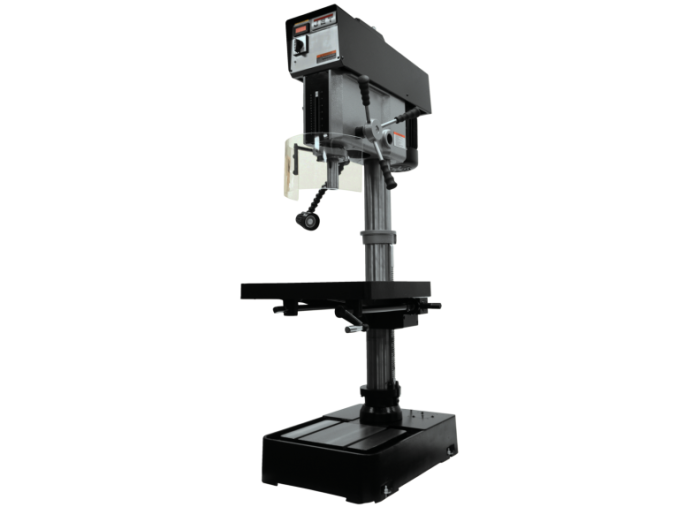

Jet JDP-20VS-1 1-1/4 Drilling Capacity 2HP 115/230V 1Ph JT9-354230

Features

• CSA/CUS Certified
• Front Mounted LED Spindle RPM Readout
• Front mounted positive control depth stop
• Head is massively constructed for more accuracy and rigidity and heavy duty cast iron design
• Massive 3" quill diameter
• Large Hand Grips designed with the users comfort in mind
• Large precision ground T-Slot production table for easy set ups
• Drill Chuck is not included
• Table rotates 360° around the column
• Variable spindle speeds

Specifications

• Stock Number: JT9-354230
• Assembled Machine Dimensions (L x W x H) (In.): 42-1/2 x 27 x 78-3/4
• Base Dimensions (In.): 27 x 19
• Base Size (In.): 27 x 19
• Base Slots Number & Size (In.): 3 & 5/8
• Column Diameter (In.): 4-1/2
• Distance Column to Spindle (In.): 10-7/16
• Drilling Capacity Cast Iron (In.): 1-1/4
• Drilling Capacity Mild Steel (In.): 1
• Drills to Center of Circle (In.): 20
• Model Number: JDP-20VS-1
• Motor (HP): 2HP, 115/ 230V, 1ph ,4P
• Motor Phase: Single
• Motor Power (HP): 2
• Motor Voltage (V.): 115/230
• Number of Spindle Speeds: Variable
• Overall Dimensions (L x W x H) (In.): 38.18 x27.16 x79.52
• Prewired Voltage (V.): 115
• Prop 65: Cancer and Reproductive Harm
• Range of Spindle Speeds (RPM): 300 - 2,000
• Spindle Distance to Base (In.): 44-1/2
• Spindle Distance to Table (Max.) (In.): 30-1/4
• Spindle Speed Range (RPM): 300 - 2000
• Spindle Speed (RPM): 300 - 2000
• Spindle Taper: MT3
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel (In.): 6
• Style (Type): Variable Speed
• Swing (In.): 20
• T-Slot Centers (In.): 7-7/16
• T-Slots Number and Size (In.): 3 and 5/8
• Table Size (L x W) (In.): 22x18-3/4
• Table Travel (In.): 20
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 154
• Gross Weight: 780.0
• Net weight: 780.0
