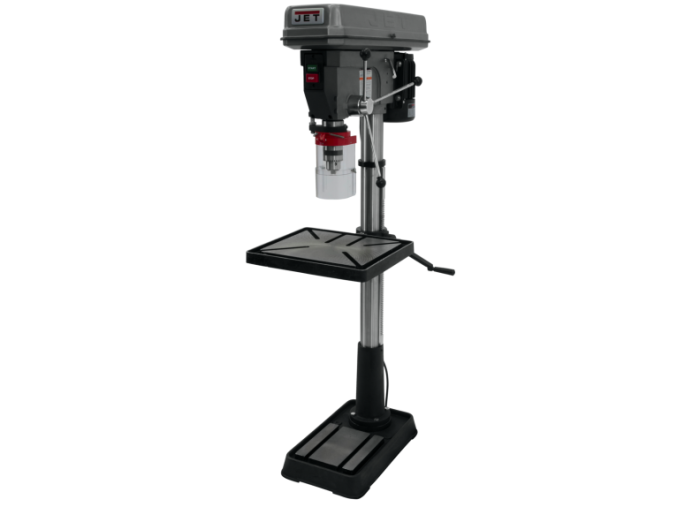

Jet JDP-20MF 20" Floor Drill Press 115/230V 1Ph JT9-354170

Features

• 1/2" Dia. external depth stop with three nut locking feature for quick adjustment
• Adjustable tension spindle return spring
• Drill chuck and key included
• Hinged metal belt and pulley cover
• On/off switch located on front of drill press head
• Quick adjustment motor mount for rapid changing of spindle speeds
• Telescoping safety spindle guard

Specifications

• Stock Number: JT9-354170
• Base Dimensions (In.): 13-3/4 x 22-3/4
• Base Work Table (In.): 13 x 8-1/2
• Column Diameter (In.): 3-3/8
• Distance Column to Spindle (In.): 10
• Drilling Capacity Cast Iron (In.): 1
• Drilling Capacity Mild Steel (In.): 3/4
• Drills to Center of Circle (In.): 20
• Model Number: JDP-20MF
• Motor (HP): 1-1/2 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 12
• Overall Dimensions (L x W x H) (In.): 33-1/2 x 18-1/2 x 67
• Prop 65: Cancer and Reproductive Harm
• Range of Spindle Speeds (RPM): 150 - 4,200
• Spindle Distance to Base (In.): 46-3/4
• Spindle Distance to Table (Max.) (In.): 29-1/8
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel (In.): 4-5/8
• Style (Type): Variable
• T-Slot Centers (In.): 3-1/2
• T-Slots Number and Size (In.): 6 and 1/2
• Table Size (L x W) (In.): 18-1/2 x 16
• Table Travel (In.): 21-1/2
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 80
• Gross Weight: 325.0
• Net weight: 282.0
