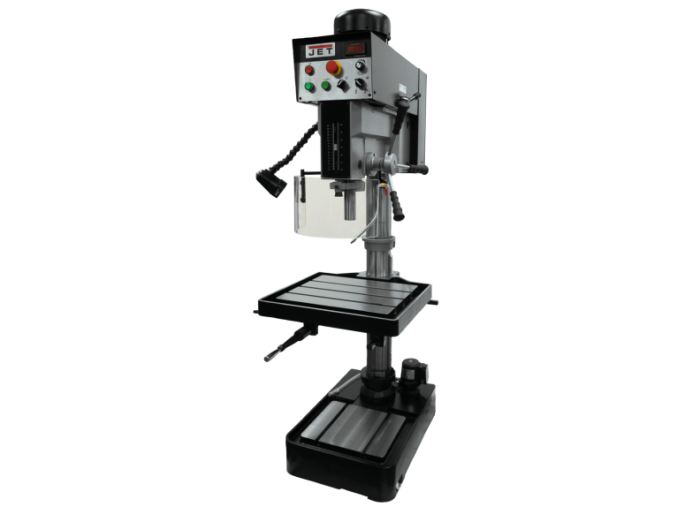

Jet JDP-20EVS-110 1-1/2" Drilling Capacity 2HP 115V 1Ph JT9-354220

Features

• Coolant system is optional #5512104
• CSA/CUS Certified
• Front Mounted LED Spindle RPM Readout
• Front mounted positive control depth stop
• Heavy-duty steel column for increased precision and rigidity
• High torque at all speeds both forward and reverse
• Large Hand Grips designed with the users comfort in mind
• Large precision ground T-Slot production table for easy set ups
• Latest AC Inverter Variable Speed Technology
• Spindle is supported by high quality ball bearings

Specifications

• Stock Number: JT9-354220
• Base Dimensions (In.): 27 x 19
• Column Diameter (In.): 4-1/2
• Distance Column to Spindle (In.): 10-7/16
• Drilling Capacity Cast Iron (In.): 1-1/2
• Drilling Capacity Mild Steel (In.): 1-3/8
• Drills to Center of Circle (In.): 20
• Inverter Type: 115V, Single Phase
• Model Number: JDP-20EVS-110
• Motor (HP): 2 HP, 115V 1ph
• Overall Dimensions (L x W x H) (In.): 38.18 x 27.16 x 79.52
• Prop 65: Cancer and Reproductive Harm
• Range of Spindle Speeds (RPM): 65-540 /245- 2,000
• Spindle Distance to Base (In.): 44-1/2
• Spindle Distance to Table (Max.) (In.): 30-1/4
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel (In.): 6
• Style (Type): Variable Speed
• T-Slot Centers (In.): 7-7/16
• Table Size (L x W) (In.): 22x18-3/4
• Table Travel (In.): 20
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 154
• Gross Weight: 792.0
• Net weight: 792.0
