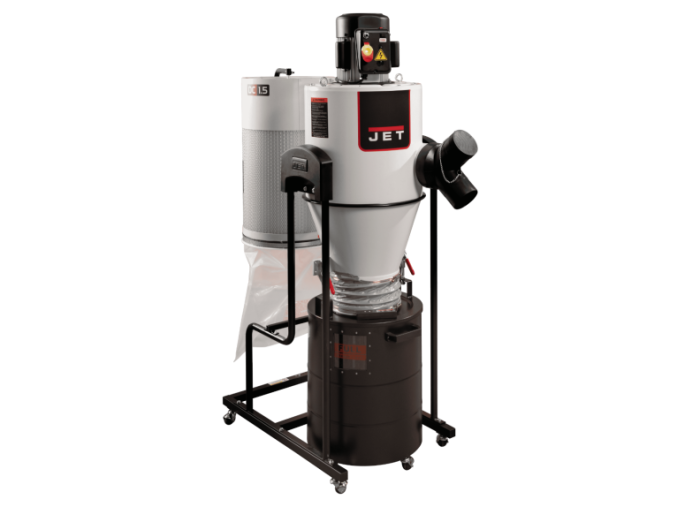

Jet JCDC-1.5 Cyclone Dust Collector 1.5HP 115V JT9-717515

Features

• Direct-mounted filter eliminates inefficiencies from rigid flex hosing and bends
• Double paddle manual cleaning system quickly cleans the pleated filter
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in a 20-gallon drum with quick-release levers and independent casters for quick emptying
• Heavy debris is pulled down to the collection drum before debris stream reaches the filter, providing constant suction
• Included radio frequency remote control works from up to 50 feet away
• Swivel casters make it easy to move the unit around the shop
• Cyclone’s two-stage separation provides more working CFM than comparable horsepower single-stage units

Specifications

• Stock Number: JT9-717515
• 1-Hose Connection Diameter (In.): 6
• 2-Hoses Connection Diameter (In.): 4
• Canister Filter Length (In.): 15-3/4
• Collection Drum Capacity (gal.): 20
• Filter Efficiency (Micron): 1
• Footprint (L x W/In.): 47 x 22
• Impeller Material: Steel
• Max. Static Pressure (Wc.): 8.268
• MERV Value: 13
• Model Number: JCDC-1.5
• Motor Amps: 14
• Motor Power (HP): 1.5
• Motor Voltage (V.): 115
• Prewired Voltage (V.): 115
• Prop 65: Cancer and Reproductive Harm
• Sound Rating (Db.): 75
• Static Pressure Loss (EU Method) (Wc.): 2.677
• Static Pressure Loss (US Method) (Wc.): 1.535
• Warranty: 5 Year
• Gross Weight: 175.0
• Net Weight: 132.0
