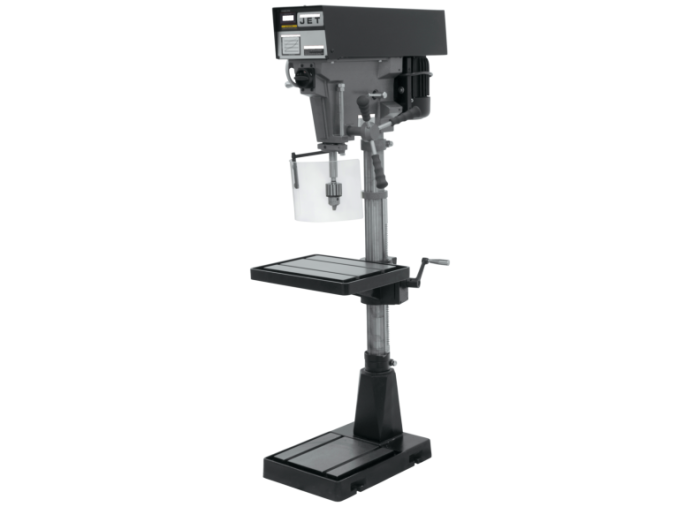

Jet J-A5816 15" Variable Speed Floor Model Drill Press 115V1Ph JT9-354550

Features

• 1/2" Drill chuck and arbor included
• 3" column diameter for maximum head support
• 6" stroke for deep hole application
• Full bearing support on quill for maximum spindle stiffness
• Handwheel speed adjustment of 400 to 5,000 RPM
• Large 2-1/4" quill for greater accuracy

Specifications

• Stock Number: JT9-354550
• Base Dimensions (In.): 20-7/16 x 14-3/16
• Base Work Table (In.): 12-1/8 x 11-13/16
• Column Diameter (In.): 3
• Distance Column to Spindle (In.): 7-1/2
• Drilling Capacity Cast Iron (In.): 5/8
• Drilling Capacity Mild Steel (In.): 1/2
• Drills to Center of Circle (In.): 15
• Model Number: J-A5816
• Motor (HP): 1 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 30 x 20 x 71
• Prop 65: Cancer and Reproductive Harm
• Range of Spindle Speeds (RPM): 400 - 5,000
• Spindle Distance to Base (In.): 44-1/2
• Spindle Distance to Table (Max.) (In.): 25-3/4
• Spindle Taper (In. x TPI): MT-2
• Spindle Travel (In.): 6
• Style (Type): Variable
• T-Slot Centers (In.): 5-5/16
• T-Slots Number and Size (In.): 2 and 1/2
• Table Size (L x W) (In.): 15 x 18
• Table Travel (In.): 16-3/4
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 90
• Gross Weight: 388.0
• Net weight: 388.0
