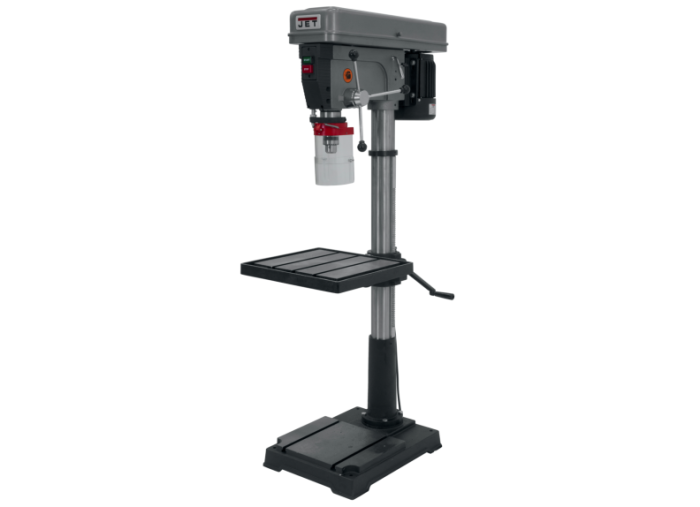

Jet J-2550 20" Floor Model Drill Press 115V 1Ph JT9-354402

Features

• 4-3/4" stroke for deep hole applications
• Cast iron head
• Constructed to provide a solid base for drilling
• Large ground steel column for maximum head and table support
• Large production table tilts 45°
• Large quill allows greater accuracy
• Telescoping safety spindle guard
• The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

Specifications

• Stock Number: JT9-354402
• Base Dimensions (In.): 22-3/4 x 17-3/4
• Column Diameter (In.): 3-5/8
• Distance Column to Spindle (In.): 10
• Drilling Capacity Cast Iron (In.): 3/4
• Drilling Capacity Mild Steel (In.): 5/8
• Drills to Center of Circle (In.): 20
• Model Number: J-2550
• Motor (HP): 1 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 12
• Overall Dimensions (L x W x H) (In.): 33-1/2 x 18-1/2 x 67
• Prop 65: Cancer and Reproductive Harm
• Range of Spindle Speeds (RPM): 150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200
• Spindle Distance to Base (In.): 43-1/2
• Spindle Distance to Table (Max.) (In.): 24
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel (In.): 4-3/4
• Style (Type): Belt Drive
• T-Slot Centers (In.): 4
• T-Slots Number and Size (In.): 3 and 1/2
• Table Size (L x W) (In.): 18-11/16 x 16-3/4
• Table Travel (In.): 21-1/2
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 66
• Gross Weight: 304.0
• Net weight: 304.0
