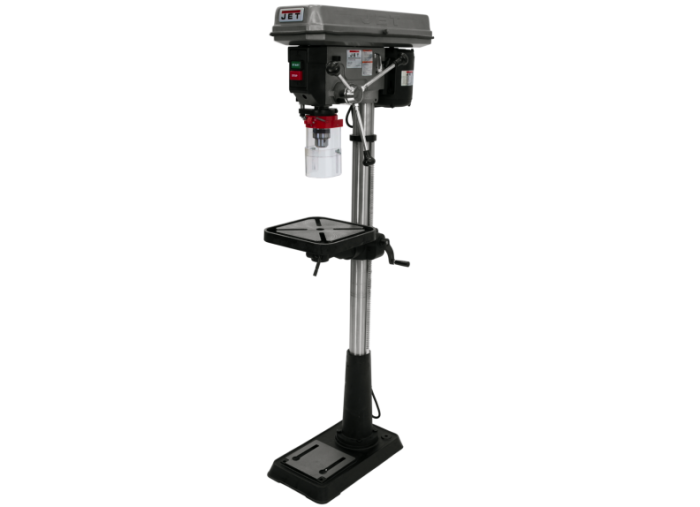

Jet J-2500 15" Floor Model Drill Press 115V 1Ph JT9-354400

Features

• 3-1/8" stroke for deep hole applications
• Cast iron head
• Constructed to provide a solid base for drilling
• Large ground steel column for maximum head and table support
• Large quill allows greater accuracy
• Telescoping safety spindle guard
• The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

Specifications

• Stock Number: JT9-354400
• Base Dimensions (In.): 11 x 19-1/2
• Column Diameter (In.): 2-7/8
• Distance Column to Spindle (In.): 7-1/2
• Drilling Capacity Cast Iron (In.): 5/8
• Drilling Capacity Mild Steel (In.): 1/2
• Drills to Center of Circle (In.): 15
• Model Number: J-2500
• Motor (HP): 3/4 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 16
• Overall Dimensions (L x W x H) (In.): 31 x 13 x 63
• Prop 65: Cancer and Reproductive Harm
• Range of Spindle Speeds (RPM): 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
• Spindle Distance to Base (In.): 48
• Spindle Distance to Table (Max.) (In.): 24
• Spindle Taper (In. x TPI): MT-2
• Spindle Travel (In.): 3-3/8
• Style (Type): Belt Drive
• T-Slots Number and Size (In.): 3 - 5/8
• Table Size (L x W) (In.): 11-1/2 x 11-1/2
• Table Travel (In.): 24
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 44
• Gross Weight: 167.0
• Net weight: 167.0
