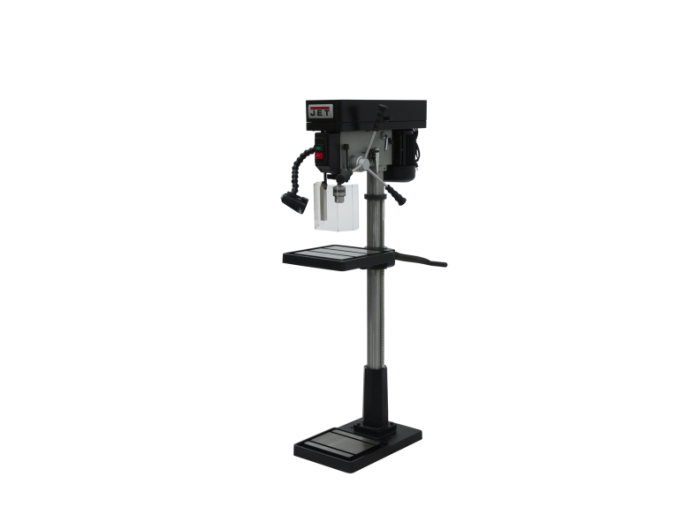

Jet IDP-17 17" Industrial Floor Model Drill Press JT9-354300

Features

• 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
• Adjustable tension spindle return spring
• Drill chuck and key attach to the side of the drill press always within reach of the operator
• Hinged metal belt and pulley cover
• Large Hand Grips designed with the users comfort in mind
• On/off switch located on front of the drill press head
• Rotating, 45° tilting, crank-operated worktable with quick release clamp
• Spindle is supported by high quality ball bearings
• Table ground for accuracy

Specifications

• Stock Number: JT9-354300
• Base Dimensions (In.): 21-3/4 x 13-3/4 x 2-3/16
• Base Work Table (In.): 16-15/16 x 10-13/16
• Chuck Size (In.): 5/8
• Column Diameter (In.): 3-1/8
• Distance Column to Spindle (In.): 8-3/8
• Drilling Capacity Cast Iron (In.): 3/4
• Drilling Capacity Mild Steel (In.): 5/8
• Drills to Center of Circle (In.): 17
• Model Number: IDP-17
• Motor (HP): 1 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 12
• Overall Dimensions (L x W x H) (In.): 27-1/2 x 15-3/4 x 63
• Prop 65: Cancer and Reproductive Harm
• Range of Spindle Speeds (RPM): 350 - 2,800
• Spindle Distance to Base (In.): 50
• Spindle Distance to Table (Max.) (In.): 30-1/2
• Spindle Taper (In. x TPI): MT-2
• Spindle Travel (In.): 3-5/16
• Style (Type): Belt Drive
• T-Slot Centers (In.): 9/16
• T-Slots Number and Size (In.): 2 and 1/2
• Table Size (L x W) (In.): 14 x 14
• Warranty: 2 Year
• Gross Weight: 265.0
• Net weight: 236.0
