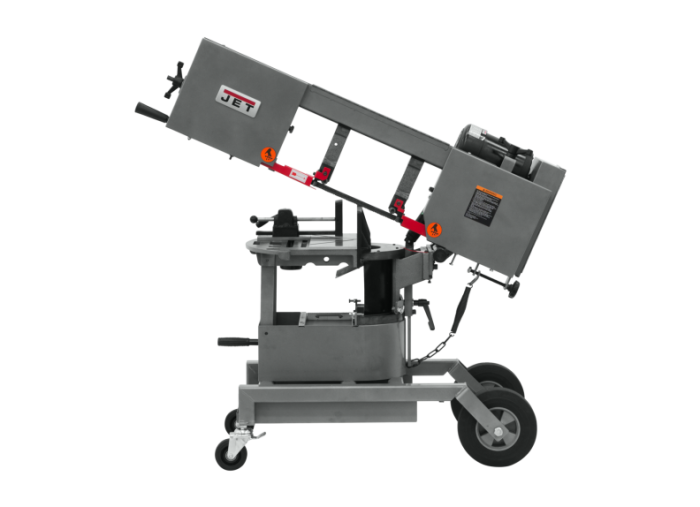

Jet HVBS-8-DMW 8” Horizontal/Vertical Dual Mitering Portable Band Saw 1HP 115V 1 Ph JT9-424460

Specifications

• Stock Number: JT9-424460
• Blade Wheel Diameter (In.): 8-13/16
• Head Movement (Deg.): +/- 45
• Maximum Vise Opening (In.): 8-1/4
• Model Number: HVBS-8-DMW
• Motor (HP): 3/4 HP, 115V, 1-Ph
• Overall Dimensions (L x W x H) (In.): 24 x 54.7 x 43.8
• Prop 65: Cancer and Reproductive Harm
• Rectangle at 45 Degrees (In.): 7 x 5-1/2
• Rectangle at 90 Degrees (In.): 7 x 8
• Round at 45 Degrees (In.): 6
• Round at 90 Degrees (In.): 8
• Table Height (In.): 27-5/16
• Warranty: 2 Year
• Gross Weight: 500.0
• Net weight: 363.0

Features

• Adjustable vise
• Automatic shut off switch stops the sawing process
• Blade is fully guarded for Operator safety
• Built-in, self-propelled blade brush prevents chip build up in blade guides
• Head is pressure controlled by a hydraulic cylinder
• Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
• Large 16" x 10" Vertical cutting table
• Power switch with safety key prevents accidental start up
• Protractor for fast and accurate angle cutting
• Removable chip tray
