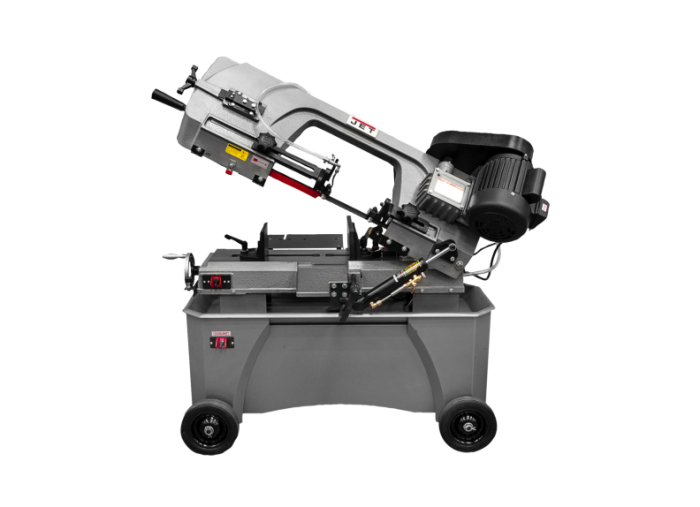

The JET HVBS-712D Deluxe Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. Increased the width and height of the stand and added new features that exceed expectations. The HVBS-712D is another innovative JET product packed with features you’ve come to expect
Specifications
- Stock Number: JT9-414560
- Blade Speeds (SFPM): 86, 132, 178, 260
- Blade Wheel Diameter (In.): 11-3/4
- Coolant Capacity (Gal.): 1
- Drive: Step Pulley
- Head Movement (Deg.): 0
- Model Number: HVBS-712D
- Motor (HP): 3/4 HP, 115/230V, 1Ph
- Overall Dimensions (L x W x H) (In.): 48 x 17 x 44
- Prewired Voltage (V.): 115
- Prop 65: Cancer and Reproductive Harm
- Rectangle at 45 Degrees (In.): 6 x 4
- Rectangle at 90 Degrees (In.): 4 x 11 / 7 x 10-1/4
- Round at 45 Degrees (In.): 5
- Round at 90 Degrees (In.): 7
- Square at 90 Degrees (In.): 7 x 7
- Vise Swivels (Deg.): 45
- Warranty: 2 Year
- Gross Weight: 418.0
- Net weight: 374.0
Features
- Blade drive is a belt to sealed, hardened, and ground gear drive system
- Blade wheels are made from flanged cast iron for increased durability
- Cast mounted adjustable hydraulic downfeed
- CSA/CUS Certified
- Four 8" Rubber Wheels for Ease of Movement
- Improved Height and width of stand with built-in storage cabinet and chip tray
- Large 9" x 12" infeed table assembly extends the support area and can be used in either horizontal or vertical positions
- Multi-position blade guides enhance use in vertical position by increasing the throat capacity from 4" to 8" and creates a safer working position
- Toolless quick lock vise with preset mitering positions at 15°, 30°, 45°
| Brand | Jet |
|---|---|
| Tool Type | Metal |
Write Your Own Review
Download information Manual
