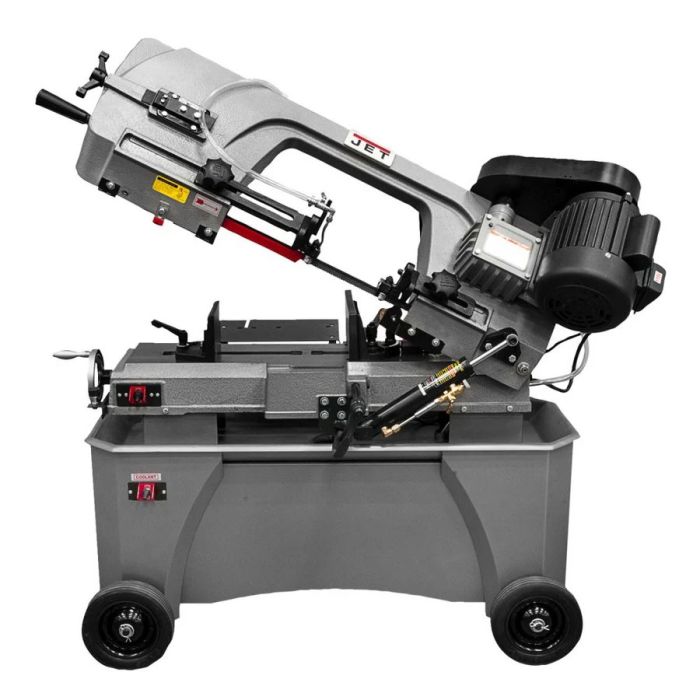

The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features you’ve come to expect.
Features
- 9" x 12" worktable in the vertical position
- Adjustable Material Stop
- Adjustable material stop for repeatability
- Blade drive is a belt to sealed, hardened, and ground gear drive system
- Blade wheels are made from flanged cast iron
- Blade wheels are made from flanged cast iron for increased durability
- Cast mounted adjustable hydraulic downfeed
- CSA/CUS Certified
- Four 8" Rubber Wheels for Ease of Movement
- Improved Height and width of stand with built-in storage cabinet and chip tray
Specifications
- Stock Number: JT9-414559
- Blade Speeds (SFPM): 86, 132, 178, 260
- Blade Wheel Diameter (In.): 11-3/4
- Coolant Capacity (Gal.): 1
- Drive: Step Pulley
- Head Movement (Deg.): 0
- Model Number: HVBS-712
- Motor (HP): 3/4 HP, 115/230V, 1Ph
- Overall Dimensions (L x W x H) (In.): 48 x 17 x 40
- Prewired Voltage (V.): 115
- Prop 65: Cancer and Reproductive Harm
- Rectangle at 45 Degrees (In.): 6-1/2 x 4-1/2
- Rectangle at 90 Degrees (In.): 4 x 11 / 7 x 10-3/8
- Round at 45 Degrees (In.): 4-1/2
- Round at 90 Degrees (In.): 7
- Square at 45 Degrees (In.): 4-1/2 x 4-1/2
- Square at 90 Degrees (In.): 7 x 7
- Vise Swivels (Deg.): 45
- Warranty: 2 Year
- Gross Weight: 418.0
- Net weight: 374.0
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
| Tool Type | Metal |
| Power | 3 Phase |
