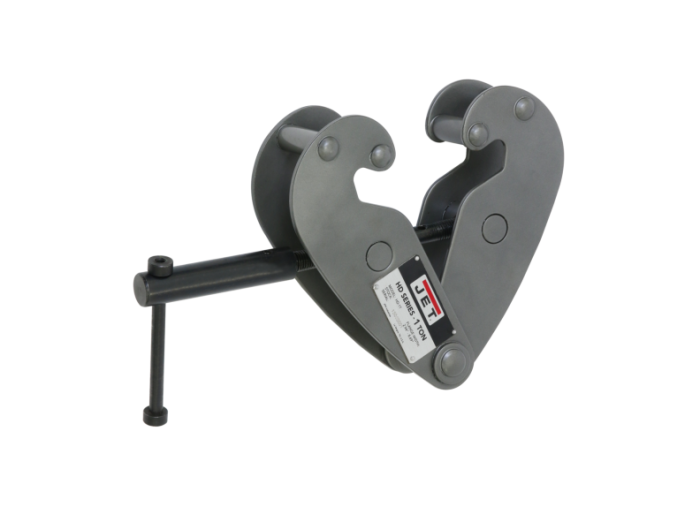

JET HD Series Beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide. Each JET Beam Clamp Jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 Ton capacities, the HD Series has a greater beam flange width for wider beams.
Features
- Clamp jaw is designed to distribute the load away from the beam flange edge
- Clamp jaw is designed to distribute the load away from the beam flange edge, increasing safety
- Complies with ANSI / ASME B30.17 and B30.20 standards
- Load tested to 125% of capacity with certificate
- Used for quick mounting of a hoist on a broad range of beams up to 8-2/3 inches wide for increased versatility
- Welded all-steel frame and powder coat finish
- Welded all-steel frame and powder coat finish provide maximum durability and protection
Specifications
- Stock Number: JT9-202710
- Capacity (Lbs.): 2200
- Load Capacity (Metric Tons): 1
- Load Capacity (Tons): 1
- Maximum Beam Flange Width (In.): 8-2/3
- Minimum Beam Flange Width (In.): 3
- Model Number: HD-1T
- Prop 65: Cancer and Reproductive Harm
- Warranty: 2 Year
- Gross Weight: 11.2
- Net weight: 11.0
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
