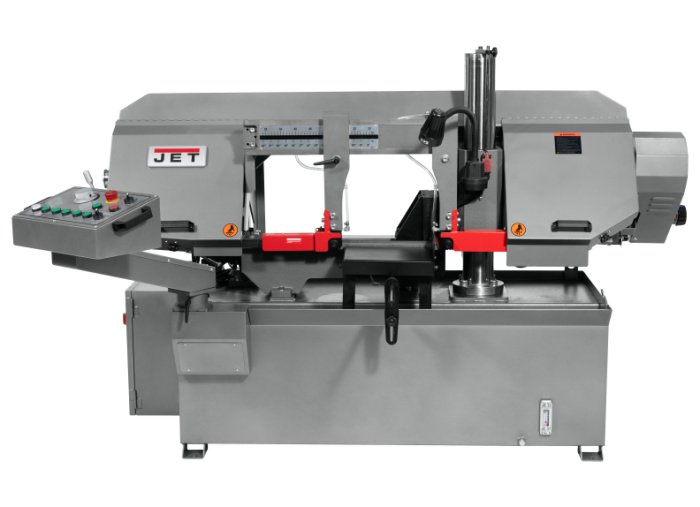

Jet HBS1220DC, 12x20" Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3 Phase JT9-413400

Features

• Heavy duty construction reduces vibration and deflection
• Coolant is distributed through the blade guides through an integrated coolant system
• Blade tension gauge helps to ensure the blade is in the correct cutting position
• Built-in, self-propelled blade brush prevents chip build up in blade guides
• Motor designed for continuous operation
• Powerful gearbox for long life
• Two column design for more productive cutting

Specifications

• Stock Number: JT9-413400
• Bed Height (In.): 27
• Blade Length (In.): 155-1/2
• Blade Speed (SFPM): 95 - 295
• Blade Speeds (SFPM): 86,157,228,330
• Blade Wheel Diameter (In.): 16
• Drive: Mechanical Variable Speed
• Electrics: 3HP, 230/460V, 3Ph
• Model Number: HBS1220DC
• Motor (HP): 3 HP, 230/460V, 1Ph
• Overall Dimensions (L x W x H) (In.): 81 x 42-1/2 x 54-1/2
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Rectangle at 90 Degrees (In.): 12 x 20
• Round at 90 Degrees (In.): 12
• Shipping Weight (Lbs.): 1628
• Square at 90 Degrees (In.): 12
• Throat Depth (In.): 12 x 12
• Warranty: 2 Year
• Gross Weight: 1740.0
• Net weight: 1420.0
• Blade Size (In.): 1-1/8 x 0.043 x 155-1/2
• Coolant Pump Motor: 1/8HP, 230/4660V, 3Ph
• Oil Pump Motor: 1HP, 230/460V, 3Ph
