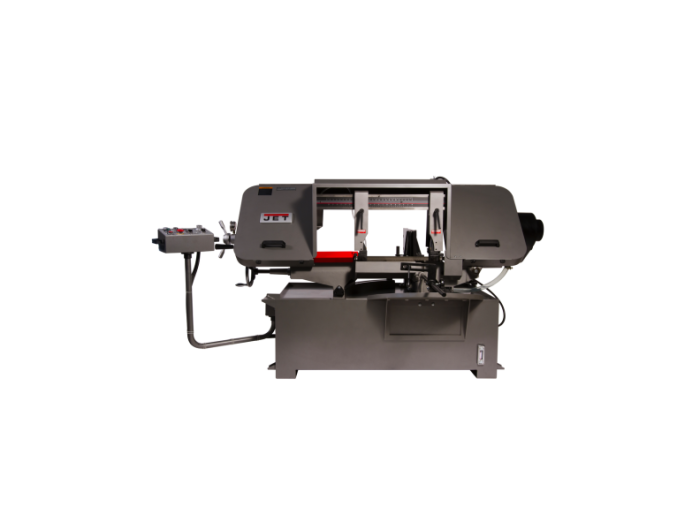

Jet HBS-1220MSA, 12" x 20" Semi-Automatic Mitering Variable Speed Bandsaw JT9-424476
This JET large capacity , semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45° angle. The hydraulic downfeed control is easily adjusted, enabling feed rates to evolve with various types of materials.
Features
- Automatic blade breakage sensor detects accidental breakage and interrupts the power
- Auxiliary roller support on back of vise
- Blade is fully guarded for Operator safety
- Built-in, self-propelled blade brush prevents chip build up in blade guides
- Circulating coolant system through both blade guides
- CSA/CUS Certified
- Heavy Duty construction
- One piece blade cover makes changing blades extremely easy
- Semi-automatic bow raises after cut to predetermined height
- Swing away control arm puts the controls at the Operator fingertips
Specifications
- Stock Number: JT9-424476
- Head Movement (Deg.): 45
- Maximum Vise Opening (In.): 19-/5/8
- Model Number: HBS-1220MSA
- Motor (HP): 3 HP , 230/460V, 3-Ph
- Overall Dimensions (L x W x H) (In.): 87 x 31.5 x 53
- Prop 65: Cancer and Reproductive Harm
- Rectangle at 45 Degrees (In.): 12-9/16 x 11-7/32
- Round at 45 Degrees (In.): 11-7/32
- Round at 90 Degrees (In.): 11-13/16
- Warranty: 2 Year
- Gross Weight: 1606.0
- Net weight: 1430.0
| Brand | Jet |
|---|---|
| Tool Type | Metal |
