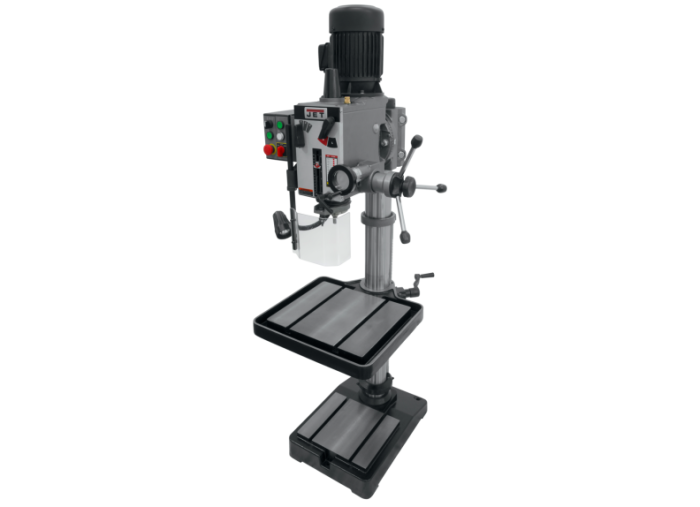

Jet GHD-20T 20" Gear Head Tapping Drill Press 230V 3Ph JT9-354022

Features

• Easily accessible table raiser
• Head tilts left or right
• Heavy-duty design allows a variety of precision drilling and tapping applications
• Integrated tapping and reversing controls
• Large production table and T-slotted base

Specifications

• Stock Number: JT9-354022
• Base Dimensions (In.): 26 x 18
• Base Work Table (In.): 15-1/4 x 13
• Column Diameter (In.): 4-1/2
• Distance Column to Spindle (In.): 10
• Drilling Capacity Cast Iron (In.): 1-1/2
• Drilling Capacity Mild Steel (In.): 1-1/4
• Drills to Center of Circle (In.): 20
• Model Number: GHD-20T
• Motor (HP): 2 HP (2 Speed) , 230V, 3Ph
• Overall Dimensions (L x W x H) (In.): 32 x 24 x 71
• Prop 65: Cancer and Reproductive Harm
• Quill Diameter (In.): 3
• Quill Feed: Manual
• Range of Spindle Speeds (RPM): 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
• Spindle Distance to Base (In.): 44-5/16
• Spindle Distance to Table (Max.) (In.): 30-1/2
• Spindle Taper (In. x TPI): MT-3
• Spindle Travel (In.): 5
• Style (Type): Geared Head
• T-Slot Centers (In.): 9
• Table Size (L x W) (In.): 21-3/4 x 19-1/2
• Table Travel (In.): 25-1/2
• Tapping Capacity Cast Iron (In.): 15/16
• Tapping Capacity Mild Steel (In.): 15/16
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 275
• Gross Weight: 739.0
• Net weight: 700.0
