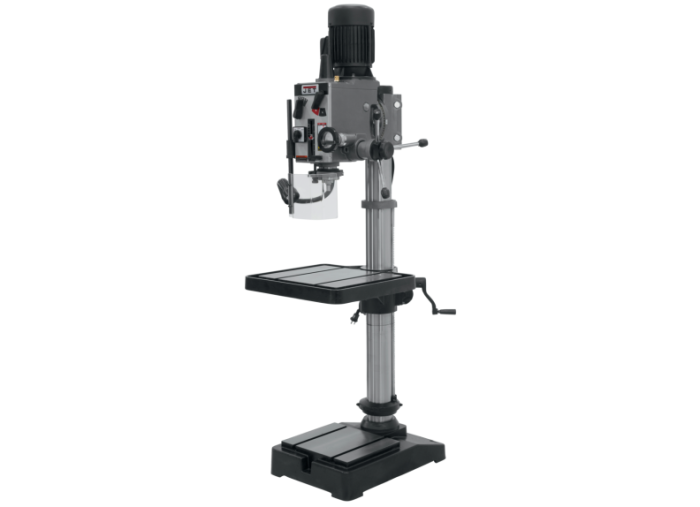

JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results.
Features
- Easily accessible table raiser
- Head tilts left or right
- Large production table and T-slotted base
- Three power downfeed rates
Specifications
- Stock Number: JT9-354020
- Base Dimensions (In.): 26 x 18
- Base Work Table (In.): 15-1/4 x 13
- Column Diameter (In.): 4-1/2
- Distance Column to Spindle (In.): 10
- Drilling Capacity Cast Iron (In.): 1-1/2
- Drilling Capacity Mild Steel (In.): 1-1/4
- Drills to Center of Circle (In.): 20
- Model Number: GHD-20
- Motor (HP): 2 HP (2 Speed) , 230V, 3Ph
- Overall Dimensions (L x W x H) (In.): 32 x 24 x 71
- Prop 65: Cancer and Reproductive Harm
- Quill Diameter (In.): 3
- Quill Feed: Manual
- Range of Spindle Speeds (RPM): 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
- Spindle Distance to Base (In.): 44-15/16
- Spindle Distance to Table (Max.) (In.): 30-1/2
- Spindle Taper (In. x TPI): MT-3
- Spindle Travel (In.): 5
- Style (Type): Geared Head
- T-Slot Centers (In.): 9
- Table Size (L x W) (In.): 21-3/4 x 19-1/2
- Table Travel (In.): 25-1/2
- Warranty: 2 Year
- Work Table Weight Capacity (Lbs.): 275
- Gross Weight: 698.0
- Net weight: 660.0
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
| Power | 3 Phase |
