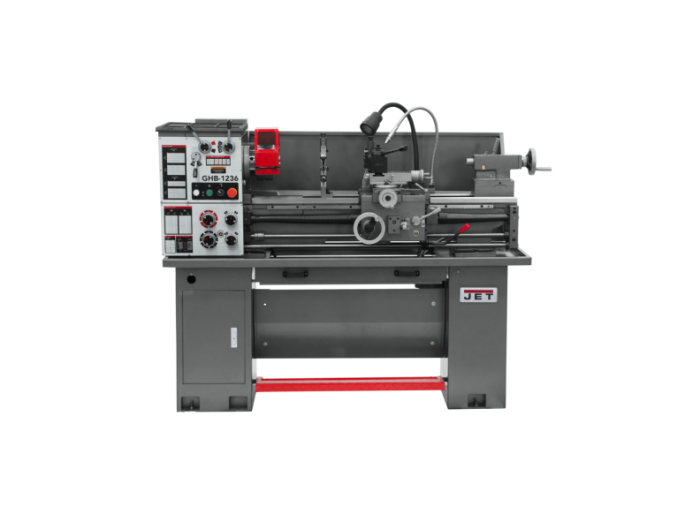

Jet GHB-1236 Geared Head Bench Lathe in Jet Metalworking Turning Lathes JT9-321236

Specifications

• Stock Number: JT9-321236
• Carriage Travel (In.): 27-3/8
• Compound Slide Travel (In.): 3
• Length of Gap (In.): 8-3/4
• Max Tool Size (In.): 3/4 x 3/4
• Model Number: GHB-1236
• Motor (HP): 2HP, 230V, Single Phase
• Number of Inch Threads: 36.0000
• Number of Longitudinal and Cross Feed Rates: 48/36
• Number of Metric Threads: 32.0000
• Number of Spindle Speeds: 9
• Overall Dimensions (L x W x H) (In.): 66-1/64 x 29-1/2 x 59-13/16
• Prop 65: Cancer and Reproductive Harm
• Range of Cross Feeds (IPR): 0.0014 - 0.0116
• Range of Inch Threads (TPI): 4-60
• Range of Longitudinal Feeds (IPR): 0.0019 - 0.0472
• Range of Metric Threads: 0.4-7mm
• Range of Spindle Speeds (RPM): 75 - 1400
• Spindle Bore (In.): 1.575
• Spindle Mount: D1-4
• Spindle Taper with Sleeve: MT-5
• Steady Rest Capacity (In.): 0.31-2.95
• Swing Over Bed (In.): 12
• Swing Over Cross Slide (In.): 7-1/2
• Swing Through Gap (In.): 18
• Tailstock Spindle Travel (In.): 3-1/2
• Taper in Tailstock Spindle: MT-3
• Warranty: 2 Year
• Width of Bed (In.): 7.12
• Gross Weight: 1252.0
• Net weight: 1094.0

Features

• Compound and cross slide have backlash adjustment
• Emergency stop within easy reach of the Operator
• Enclosed gearbox design provides smooth, quiet operation
• Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
• Induction hardened and ground bedway
• Mounted on stand with foot pedal, coolant and ready to use
• Spindle Spider available for ease of turning Gun barrels
• Steady Rest with Roller Bearings
• Tailstock may be offset for turning taper
