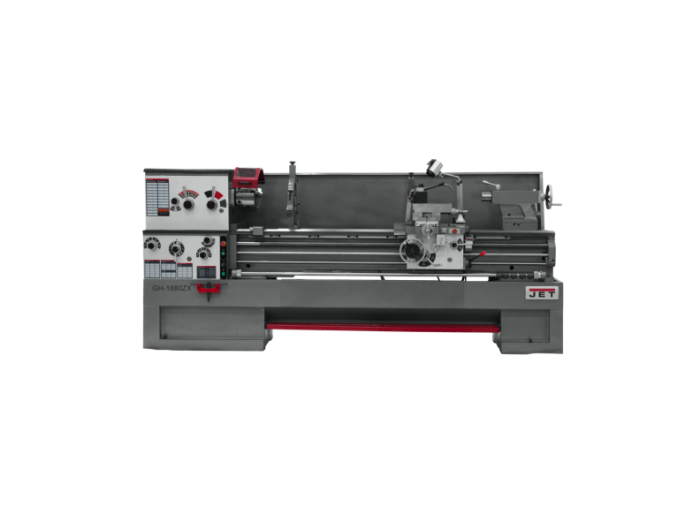

Jet GH-1880ZX With Newall DP700 DRO JT9-321488

Features

• Articulating LED work lamp
• Centrally located controls with jog button
• Electronic Chuck Key Holder
• Five position automatic carriage stop increases productivity
• Full length splash guard and coolant return
• Large capacity steady rest with ball bearing tips
• Large easy to use foot brake
• Mounting pads and levelers
• Removable gap allows large diameter work
• Tool box and adjusting tools

Specifications

• Stock Number: JT9-321488
• Carriage Travel (In.): 74-5/16
• Compound Slide Travel (In.): 5-1/8
• Cross Slide Travel (In.): 9
• Drive: Geared Head
• Length of Gap (In.): 12
• Max Tool Size (In.): 1 x 1
• Model Number: GH-1880ZX
• Motor (HP): 7-1/2 HP, 230/460, 3 Ph
• Number of Inch Threads: 61.0000
• Number of Longitudinal and Cross Feed Rates: 46/31
• Number of Metric Threads: 24.0000
• Number of Spindle Speeds: 12
• Overall Dimensions (L x W x H) (In.): 136 x 44 x 66
• Prop 65: Cancer and Reproductive Harm
• Range of Cross Feeds (IPR): .0006 - .0360
• Range of Inch Threads (TPI): 1-5/8 - 72
• Range of Longitudinal Feeds (IPR): .0015 - .0900
• Range of Metric Threads: .05 - 20
• Range of Spindle Speeds (RPM): 25 - 1,800
• Size: 18 x 80
• Spindle Bore (In.): 3-1/8
• Spindle Mount: D1-8
• Spindle Taper with Sleeve: MT-7 (MT-5)
• Steady Rest Capacity (In.): 3/8 - 7-3/4
• Style (Type): Engine - Large Spindle Bore
• Swing Over Bed (In.): 18
• Swing Over Cross Slide (In.): 11
• Swing Through Gap (In.): 27-1/2
• Tailstock Spindle Travel (In.): 5
• Taper in Tailstock Spindle: MT-5
• Warranty: 2 Year
• Width of Bed (In.): 13-1/8
• Gross Weight: 7100.0
• Net weight: 7100.0
