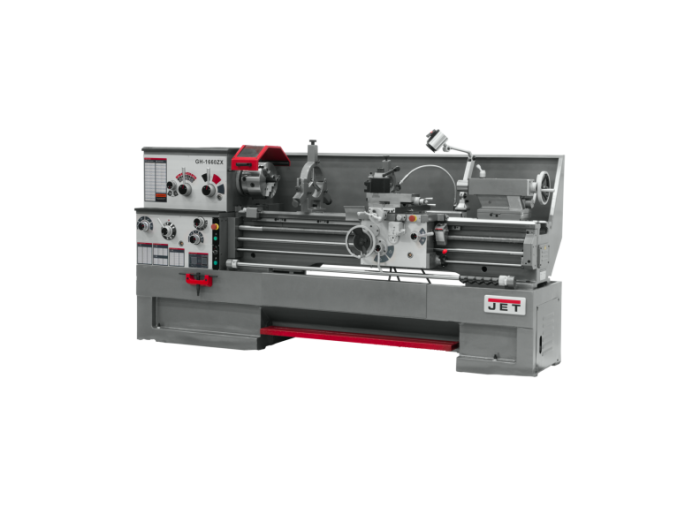

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10” three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
Features
- Articulating LED work lamp
- Centrally located controls with jog button
- Electronic Chuck Key Holder
- Five position automatic carriage stop increases productivity
- Full length splash guard and coolant return
- Large capacity steady rest with ball bearing tips
- Large easy to use foot brake
- Mounting pads and levelers
- Removable gap allows large diameter work
- Tool box and adjusting tools
Specifications
- Stock Number: JT9-321961
- Carriage Travel (In.): 55-9/16
- Compound Slide Travel (In.): 5-1/8
- Cross Slide Travel (In.): 9
- Drive: Geared Head
- Length of Gap (In.): 12
- Max Tool Size (In.): 1 x 1
- Model Number: GH-1860ZX
- Motor (HP): 7-1/2 HP, 230/460, 3 Ph
- Number of Inch Threads: 61.0000
- Number of Longitudinal and Cross Feed Rates: 46/31
- Number of Metric Threads: 24.0000
- Number of Spindle Speeds: 12
- Overall Dimensions (L x W x H) (In.): 115 x 44 x 66
- Prop 65: Cancer and Reproductive Harm
- Range of Cross Feeds (IPR): .0006 - .0360
- Range of Inch Threads (TPI): 1-5/8 - 72
- Range of Longitudinal Feeds (IPR): .0015 - .0900
- Range of Metric Threads: .05 - 20
- Range of Spindle Speeds (RPM): 25 - 1,800
- Size: 18 x 60
- Spindle Bore (In.): 3-1/8
- Spindle Mount: D1-8
- Spindle Taper with Sleeve: MT-7 (MT-5)
- Steady Rest Capacity (In.): 3/8 - 7-3/4
- Style (Type): Engine - Large Spindle Bore
- Swing Over Bed (In.): 18
- Swing Over Cross Slide (In.): 11
- Swing Through Gap (In.): 27-1/2
- Tailstock Spindle Travel (In.): 5
- Taper in Tailstock Spindle: MT-5
- Warranty: 2 Year
- Width of Bed (In.): 13-1/8
- Gross Weight: 6336.0
- Net weight: 6336.0
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
| Tool Type | Metal |
