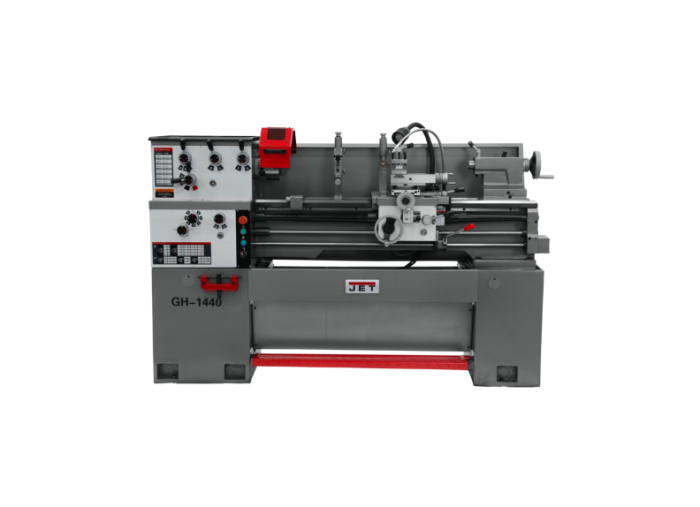

Jet GH-1440-3 Geared Head Lathe JT9-322840-4

Features

• Compound and cross slide have backlash elimination
• Front Removable Chip Tray
• Full Length Splash Guard
• Inch-metric dials are standard
• Independent lead screw and feed rod
• Safety on/off switch
• Spindle actuation control is apron mounted
• Spindle jog button for easy gear engagement and spindle inching
• Splined, not keyed, shafts are utilized
• Tailstock may be offset for turning taper

Specifications

• Stock Number: JT9-322840-4
• Carriage Travel (In.): 37-1/2
• Compound Slide Travel (In.): 3-1/2
• Length of Gap (In.): 9-3/8
• Max Tool Size (In.): 5/8 x 5/8
• Model Number: GH-1440-3
• Motor (HP): 3HP, 230/460V, 3PH
• Number of Inch Threads: 40.0000
• Number of Longitudinal and Cross Feed Rates: 40
• Number of Metric Threads: 23.0000
• Number of Spindle Speeds: 12
• Overall Dimensions (L x W x H) (In.): 74-4/5 x 28 x 46
• Prop 65: Cancer and Reproductive Harm
• Range of Cross Feeds (IPR): 0.0004 - 0.0103
• Range of Inch Threads (TPI): 4-112
• Range of Longitudinal Feeds (IPR): 0.0012 - 0.0294
• Range of Metric Threads: 0.45-7.5
• Range of Spindle Speeds (RPM): 40-1800
• Spindle Bore (In.): 1-1/2
• Spindle Mount: D1-4
• Spindle Taper with Sleeve: MT-5
• Steady Rest Capacity (In.): 3-1/2
• Swing Over Bed (In.): 14
• Swing Over Cross Slide (In.): 8-1/5
• Swing Through Gap (In.): 20
• Tailstock Spindle Travel (In.): 4-3/4
• Taper in Tailstock Spindle: MT-3
• Warranty: 2 Year
• Width of Bed (In.): 10-1/5
• Gross Weight: 2336.0
• Net weight: 2116.0
