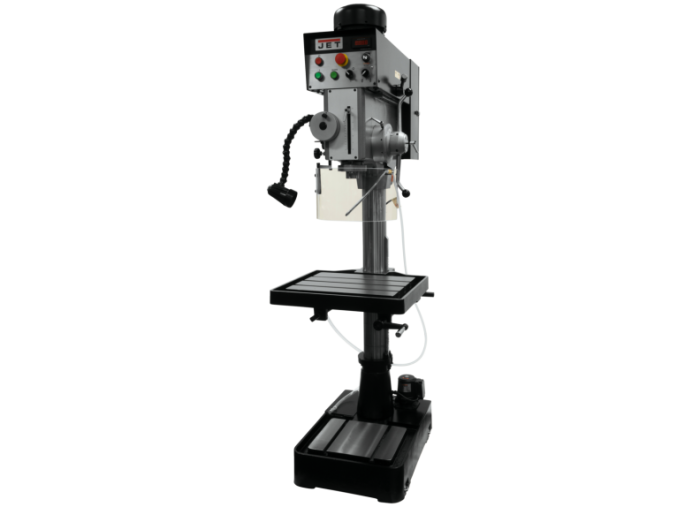

Jet Geared Head Drill Press with Power Downfeed 2HP 3Ph 230V | JDP20EVST-230-PDF JT9-354245

Specifications

• Stock Number: JT9-354245
• Base Dimensions (In.): 27 x 19
• Column Diameter (In.): 4-1/2
• Distance Column to Spindle (In.): 10-7/16
• Drilling Capacity Mild Steel (In.): 2
• Drills to Center of Circle (In.): 20
• Inverter Type: B Type 230V 1/3Ph
• Model Number: JDP20EVST-230-PDF
• Motor (HP): 2 HP, 230V 3ph
• Overall Dimensions (L x W x H) (In.): 42.5 x 27.16 x 78.74
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Range of Spindle Speeds (RPM): 60 - 2,000(60-540/225-2000)
• Spindle Taper (In. x TPI): MT-4
• Spindle Travel Auto (In.): 4-1/2
• Spindle Travel (In.): 6
• Style (Type): Variable Speed
• Swing (In.): 20
• T-Slot Centers (In.): 7-7/16
• Table Size (L x W) (In.): 22x18-3/4
• Table Travel (In.): 20
• Tapping Capacity Cast Iron (In.): 1
• Tapping Capacity Mild Steel (In.): 1
• Warranty: 2 Year
• Work Table Weight Capacity (Lbs.): 154
• Gross Weight: 847.0
• Net weight: 847.0

Features

• CSA Coolant System
• Front Mounted LED Spindle RPM Readout
• Front mounted positive control depth stop
• Heavy-duty steel column for increased precision and rigidity
• High torque at all speeds both forward and reverse
• Large Hand Grips designed with the users comfort in mind
• Large precision ground T-Slot production table for easy set ups
• Latest AC Inverter Variable Speed Technology
