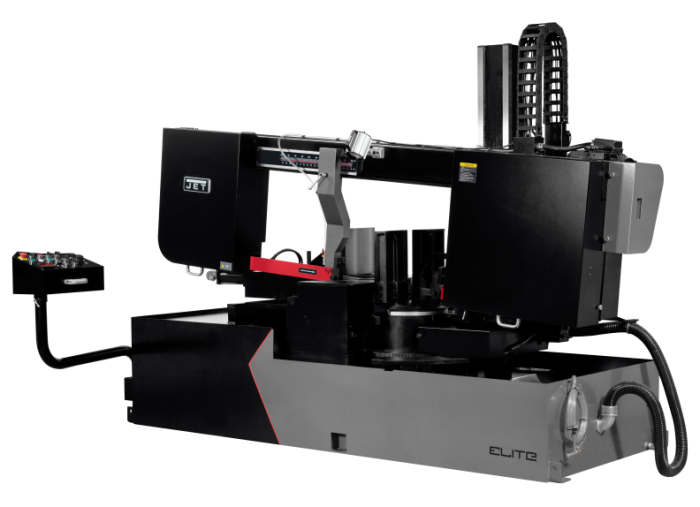

Jet ECB-1833DMEVS-230, 18 x 31" Semi-Automatic Dual Mitering EVS Bandsaw 230V, 3Ph JT9-891170

Features

• Electronic variable speed from 50-297 SFPM
• Heavy duty construction reduces vibration and deflection
• Hydraulic assist descent control
• Auto table swivel
• Blade tension gauge helps to ensure the blade is in the correct cutting position
• Semi-auto on saw bow lifting and hydraulic vise
• Swing away control box allows Operator to use in any position

Specifications

• Stock Number: JT9-891170
• Bed Height (In.): 33-15/32
• Blade Length (In.): 240
• Blade Speed (SFPM): 150-300
• Blade Speeds (SFPM): 50 - 300
• Blade Wheel Diameter (In.): 22-53/64
• Cutting Capacity (W x D) (In.): 18 x 33
• Drive: EVS
• Electrics: 7-1/2HP, 230V, 3Ph
• Floor Space Required (In.): 110 x 74 x 82-5/8
• Maximum Vise Opening (In.): 31-1/2
• Model Number: ECB-1833DMEVS-230
• Motor (HP): 7-1/2
• Overall Dimensions (L x W x H) (In.): 110 x 75 x 83
• Overall Height (In.): 82-5/8
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Rectangle at 45 Degrees (In.): 18 x 20-13/16
• Rectangle at 60 Degrees (In.): 18 x 14-29/32
• Rectangle at 90 Degrees (In.): 18 x 31-1/2
• Round at 45 Degrees (In.): 18
• Round at 60 Degrees (In.): 18
• Round at 90 Degrees (In.): 15
• Shipping Weight (Lbs.): 5500
• Square at 45 Degrees (In.): 18 x 18
• Square at 60 Degrees (In.): 15 x 15
• Square at 90 Degrees (In.): 18 x 18
• Throat Depth (In.): 18
• Warranty: 3 Year Elite
• Gross Weight: 5500.0
• Net weight: 5060.0
• Blade Size (In.): 1.61 x 0.051 x 240
• Coolant Pump Motor: 1/8HP, 230V, 3PH
• Mitering Angle Motor: 1/5HP, 460V, 3Ph
• Oil Pump Motor: 1HP, 230V, 3Ph
