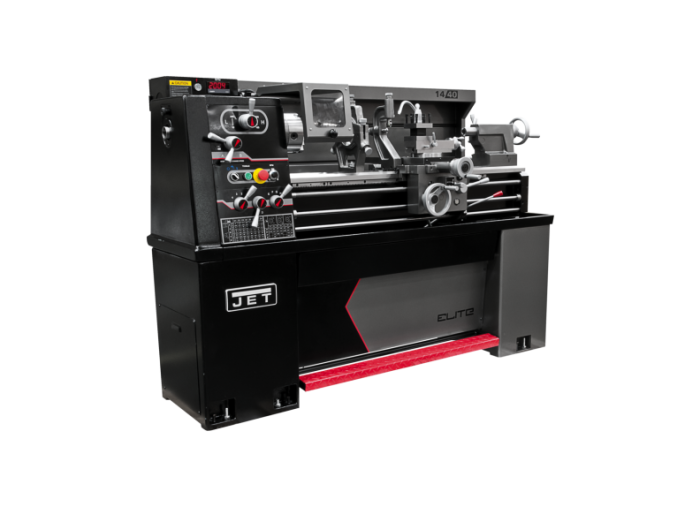

Jet E-1440VS With ACU-RITE 303 CSS DRO With Taper Attachment JT9-892466

Features

• 4-Position Carriage Stop
• Chuck guards are standard equipment on all ELITE lathes for increased safety
• Front facing chip pan allows easy chip removal from the front of the machine
• Hardened and ground gears in headstock reduce vibration and deflection
• Inverter drive system provides infinitely variable spindle speeds
• LED RPM readout allows for precise turning speeds
• Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

Specifications

• Stock Number: JT9-892466
• Amperage Draw @ 230V 3Ph: 9
• Compound Slide Travel (In.): 4
• Cross Slide Travel (In.): 7
• Drive: EVS
• Length of Gap (In.): 9
• Model Number: E-1440VS
• Motor (HP): 3 HP, 230V, 3Ph
• Number of Inch Threads: 40.0000
• Number of Longitudinal and Cross Feed Rates: 80
• Number of Metric Threads: 22.0000
• Overall Dimensions (L x W x H) (In.): 77 x 30 x 58
• Prop 65: Cancer and Reproductive Harm
• Range of Cross Feeds (IPR): 0.0003 - 0.01
• Range of Inch Threads (TPI): 4 - 112
• Range of Longitudinal Feeds (IPR): 0.0012 - 0.0294
• Range of Metric Threads: 0.45 - 7.5
• Range of Spindle Speeds (RPM): 0 - 2,200
• Size: 14 x 40
• Spindle Bore (In.): 1-1/2
• Spindle Mount: D1-4
• Spindle Taper with Sleeve: MT-5
• Steady Rest Capacity (In.): 1/4 - 2-3/4
• Style (Type): ELITE EVS
• Swing Over Bed (In.): 14
• Swing Over Cross Slide (In.): 8-5/8
• Swing Through Gap (In.): 20
• Tailstock Spindle Travel (In.): 4-3/4
• Taper in Tailstock Spindle: MT-3
• Warranty: 3 Year Elite
• Width of Bed (In.): 8-1/2
• Gross Weight: 1940.0
• Net weight: 1653.0
