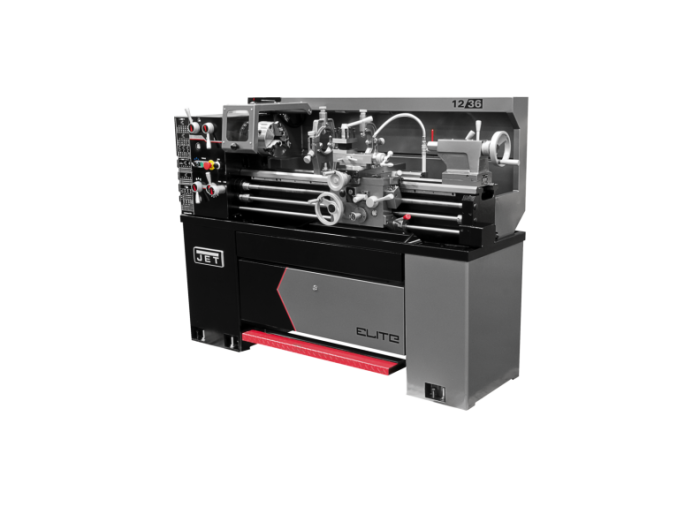

Jet E-1236VS With ACU-RITE 303 CSS DRO JT9-892315

Features

• 4-Position Carriage Stop
• Chuck guards are standard equipment on all ELITE lathes for increased safety
• Front facing chip pan allows easy chip removal from the front of the machine
• Hardened and ground gears in headstock reduce vibration and deflection
• Integrated locking tool cabinet in stand on 12" Lathe
• Inverter drive system provides infinitely variable spindle speeds
• LED RPM readout allows for precise turning speeds
• Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM

Specifications

• Stock Number: JT9-892315
• Compound Slide Travel (In.): 3-1/2
• Drive: EVS
• Length of Gap (In.): 9-1/2
• Max Tool Size (In.): 1/2 x 1/2
• Model Number: E-1236VS
• Motor (HP): 2HP, 230V,3ph
• Number of Inch Threads: 34.0000
• Number of Longitudinal and Cross Feed Rates: 50
• Number of Metric Threads: 33.0000
• Overall Dimensions (L x W x H) (In.): 71 x 30 x 60
• Prop 65: Cancer and Reproductive Harm
• Range of Cross Feeds (IPR): 0.0005 - 0.015
• Range of Inch Threads (TPI): 2 - 56
• Range of Longitudinal Feeds (IPR): 0.0016 - 0.046
• Range of Metric Threads: 0.5 - 12
• Range of Spindle Speeds (RPM): 0 - 2,000
• Size: 12 x 36
• Spindle Bore (In.): 1-9/16
• Spindle Mount: D1-4
• Spindle Taper with Sleeve: MT-5
• Steady Rest Capacity (In.): 1/4 - 2-1/2
• Style (Type): ELITE EVS
• Swing Over Bed (In.): 12
• Swing Over Cross Slide (In.): 7-5/16
• Swing Through Gap (In.): 17-1/2
• Tailstock Spindle Travel (In.): 4
• Taper in Tailstock Spindle: MT-3
• Warranty: 3 Year Elite
• Width of Bed (In.): 7-1/2
• Gross Weight: 1477.0
• Net weight: 1213.0
