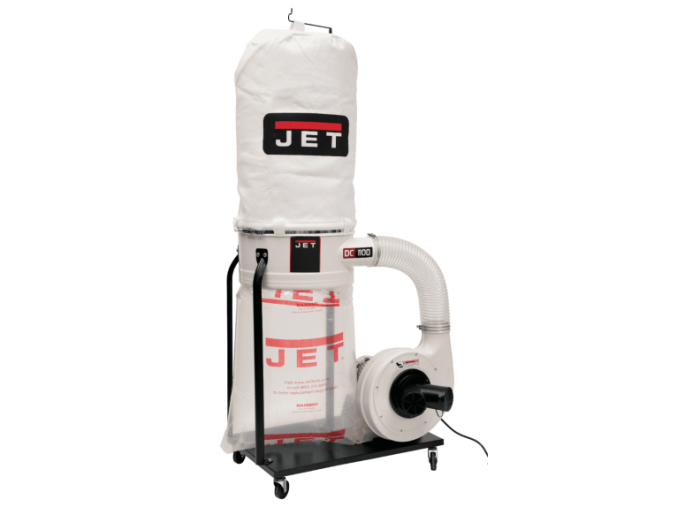

Jet Dust Collector 1.5HP 1PH 115/230V 5-Micron Bag Filter Kit | DC-1100VX-5M JT9-708658K

Features

• Eliminates premature filter clogging for sustained performance
• High air velocity (CFM) design stands up to any competitive specifications
• Includes four casters for maneuverability and total portability
• Industrial controls designed for years of trouble-free use
• Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
• Quick-connect collection bags with elastic band for fast, easy installation and removal
• Single-stage design for economical and quiet operation
• Vortex Cone improves chip separation and collector bag packing efficiency

Specifications

• Stock Number: JT9-708658K
• 1-Hose Connection Diameter (In.): 6
• 2-Hoses Connection Diameter (In.): 4
• Air Flow @ 4" (CFM): 1,100
• Bag Diameter (In.): 20
• Collection Bag Capacity (Cu. Ft.): 5.3
• Collection Bag Length (In.): 30
• Efficiency (Micron): 5
• Impeller Material: Steel
• Model Number: DC-1100VX-5M
• Motor Amps: 11/5.5
• Motor Phase: 1
• Motor Power (HP): 1-1/2
• Motor Voltage (V.): 115/230
• Overall Dimensions (L x W x H) (In.): 37 x 28 x 79
• Prewired Voltage (V.): 115
• Prop 65: Cancer and Reproductive Harm
• Sound Rating (Db.): 70 - 80
• Static Pressure (Wc.): 10-1/2
• Style (Type): Bag
• Velocity @ 4" (FPM): 12,571
• Warranty: 5 Year
• Gross Weight: 143.0
• Net Weight: 130.0
