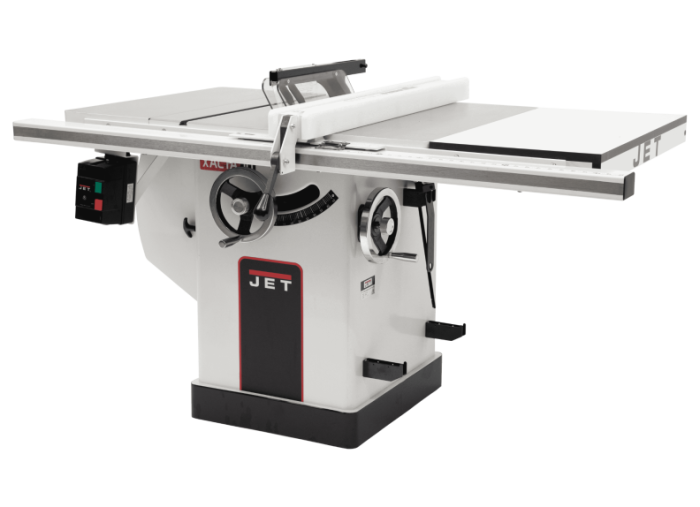

Jet Deluxe Xacta® SAW 3HP 1Ph 30" Rip JT9-708674PK

Specifications

• Stock Number: JT9-708674PK
• Blade Diameter (In.): 10
• Dust Collection Minimum CFM Required (CFM): 350
• Dust Port Outside Diameter (In.): 4
• Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
• Maximum Diameter of Dado (In.): 8
• Maximum Rip Right of Blade (In.): 30
• Maximum Width of Dado (In.): 13/16
• Miter Gauge Type: Deluxe
• Model Number: JTAS-10XL30-DX
• Motor Amps: 14.5
• Motor Phase: Single
• Motor Power (HP): 3
• Motor Voltage (V.): 230
• Prewired Voltage (V.): 230
• Prop 65: Cancer and Reproductive Harm
• Style (Type): Cabinet
• Table in Front of Saw Blade at Maximum Depth of Cut (In.): 10
• Table Size (L x W) (In.): 29 x 20
• Table Type: Cast Iron
• Warranty: 5 Year
• Gross Weight: 490.0
• Net weight: 490.0

Features

• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
• Hinged motor cover on cabinet gives quick access to the motor and belts
• Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
• Left and right cast iron extension wings
• Powder coated paint for a long-lasting, chip-resistant finish
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Wide stance heavy-duty trunnion for stability and smooth blade positioning
