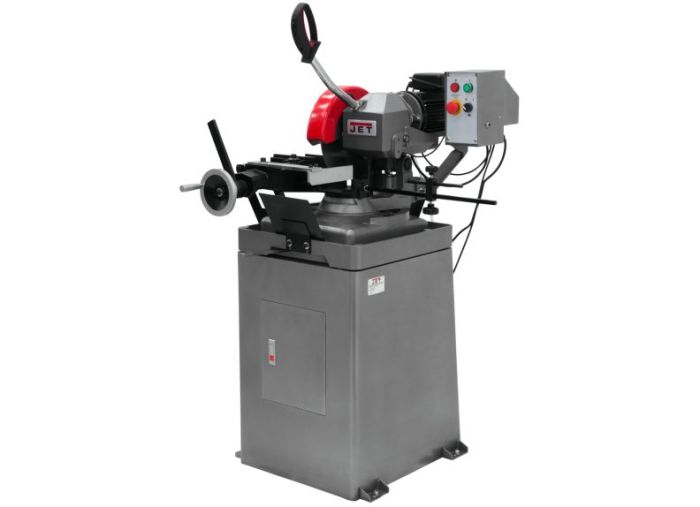

Jet CS-275, 275mm 1-Phase Ferrous Manual Cold Saw JT9-414228

Features

• 275mm (10") Ferrous Cold Saw for steel, stainless and tough to cut alloys
• Blade drive reduction gearbox operates in an oil bath for increased durability
• Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
• Fully adjustable material depth stop for sawing repeatability and increased production
• Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
• Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
• Quick tension and release mitering capabilities with stops at 45° right, 45° left
• Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
• Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards

Specifications

• Stock Number: JT9-414228
• Blade Speeds (RPM): 54.0000
• Maximum Vise Opening (In.): 4
• Model Number: CS-275-1
• Motor (HP): 1-1/2HP, 115/230V Prewired 115V, 15.68/7.8 Amps
• Prop 65: Cancer and Reproductive Harm
• Solid Rectangle at 45 Degrees (In.): 2-3/16 x 2
• Solid Rectangle at 90 Degrees (In.): 3-3/32 x 2
• Solid Round at 45 Degrees (In.): 3-19/64
• Solid Round at 90 Degrees (In.): 3-19/64
• Solid Square at 45 Degrees (In.): 2-3/16 x 2-3/16
• Solid Square at 90 Degrees (In.): 2-1/2 x 2-1/2
• Style (Type): Ferrous
• Tubing Rectangle at 45 Degrees (In.): 2-3/16 x 2
• Tubing Rectangle at 90 Degrees (In.): 3-3/32 x 2
• Tubing Round at 45 Degrees (In.): 3-19/64
• Tubing Round at 90 Degrees (In.): 3-19/64
• Warranty: 2 Year
• Gross Weight: 390.0
• Net weight: 390.0
