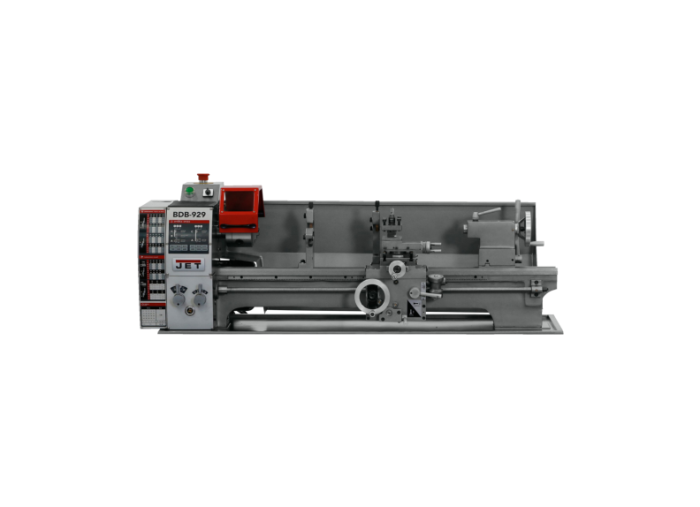

Jet BDB-929 Belt Drive Bench lathe JT9-321379

Specifications

• Stock Number: JT9-321379
• Carriage Travel (In.): 26.5
• Compound Slide Travel (In.): 1-7/8
• Max Tool Size (In.): 1/2
• Model Number: BDB-929
• Motor (HP): 3/4 HP, 115V, 1PH
• Number of Inch Threads: 27.0000
• Number of Longitudinal and Cross Feed Rates: 60
• Number of Metric Threads: 12.0000
• Number of Spindle Speeds: 6
• Overall Dimensions (L x W x H) (In.): 51x22x20
• Prop 65: Cancer and Reproductive Harm
• Range of Inch Threads (TPI): 8 - 56
• Range of Longitudinal Feeds (IPR): 0.0006-0.0368
• Range of Metric Threads: 0.5 - 3.5
• Range of Spindle Speeds (RPM): 130-2000
• Spindle Bore (In.): 3/4
• Spindle Mount: 1-1/2 x 8TPI
• Spindle Taper with Sleeve: MT-3
• Steady Rest Capacity (In.): 1-3/4
• Swing Over Bed (In.): 8-3/4
• Swing Over Cross Slide (In.): 5
• Tailstock Spindle Travel (In.): 1-9/16
• Taper in Tailstock Spindle: MT-2
• Warranty: 2 Year
• Width of Bed (In.): 4-1/2
• Gross Weight: 337.0
• Net weight: 293.0

Features

• Backlash adjustments provided throughout the carriage
• Emergency stop within easy reach of the Operator
• Full Length Splash Guard
• Power longitudinal feed allows threading and reverse threading
• Quick change gearbox provides wide range of inch and metric threads
• Reversing switch for added versatility
• Safety on/off switch
• Some images show lathe with optional stand
• Standard Accessories
