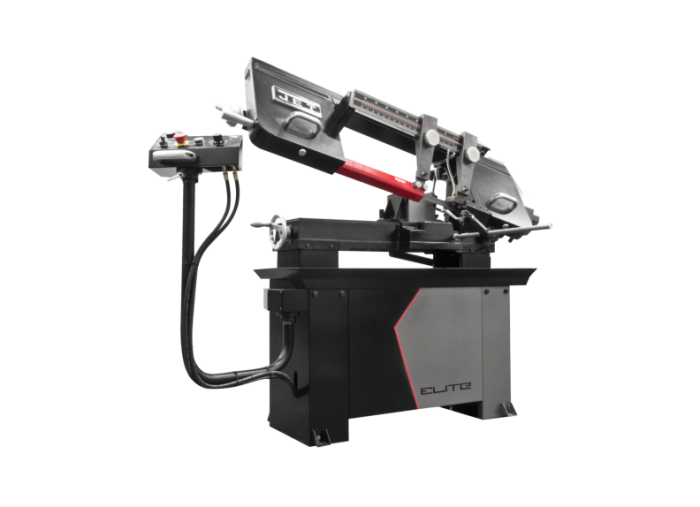

Jet 8 x 13 Variable Speed Bandsaw | EHB-8VS JT9-891015

Features

• Adjustable Material Stop
• Automatic blade shut off switch stops the sawing process
• Built-in, self-propelled chip brush prevents chip build up in blade guides
• Integrated pressurized wash hose for easy machine cleaning
• Large handwheel with blade tensioning gauge accurately measures blade pressure
• Quick positioning vise for clamping of materials
• The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions
• To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 32 in.
• Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
• Variable speed drive train allows operator to fine tune the blade speed fast and easily

Specifications

• Stock Number: JT9-891015
• Amperage Draw @ 115V 1Ph: 23
• Bed Height (In.): 32
• Blade Length (In.): 114-1/2
• Blade Speed (SFPM): 82-310
• Blade Speeds (SFPM): 82 - 310
• Blade Wheel Diameter (In.): 11-5/8
• Drive: Variable Speed
• Electrics: 1-1/2HP, 115/230V, 1-Phase
• Head Movement (Deg.): 0
• Model Number: EHB-8VS
• Motor (HP): 1-1/2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H) (In.): 62-1/2 x 23 x 48
• Prewired Voltage (V.): 115
• Prop 65: Cancer
• Rectangle at 45 Degrees (In.): 8 x 8 or 2 x 9-1/2
• Rectangle at 90 Degrees (In.): 13 x 5-1/4 / 13-1/4 x 2
• Round at 45 Degrees (In.): 8
• Round at 90 Degrees (In.): 8
• Shipping Weight (Lbs.): 770
• Square at 45 Degrees (In.): 8 x 8
• Vise Swivels (Deg.): 45
• Warranty: 3 Year Elite
• Gross Weight: 770.0
• Net weight: 680.0
• Blade Size (In.): 1 x 0.35 x 114-1/2
