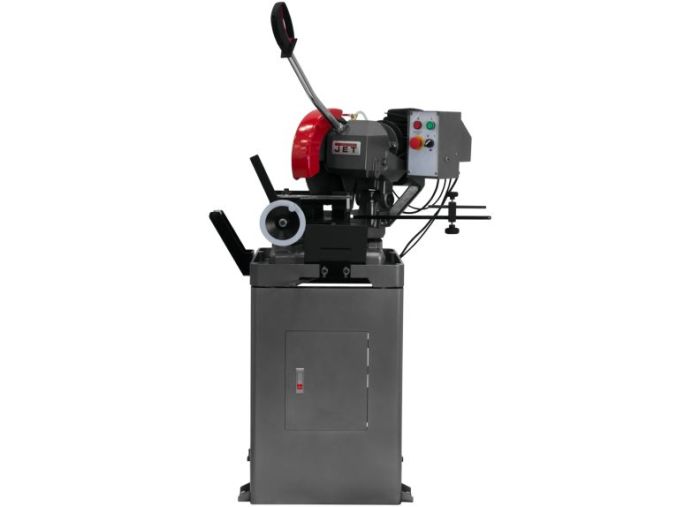

Jet 315mm Ferrous Manual Cold Saw | CS-315 JT9-414227

Features

• Blade drive reduction gearbox operates in an oil bath for increased durability
• Cast iron frame
• Flood coolant system
• Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
• Fully adjustable material depth stop for sawing repeatability and increased production
• Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
• Heavy-duty cast iron frame base with easy access storage provides a stable cutting platform
• Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
• Quick tension and release mitering capabilities with stops at 45° right, 45° left
• Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards

Specifications

• Stock Number: JT9-414227
• Maximum Vise Opening (In.): 4-11/16
• Model Number: CS-315
• Motor (HP): 2HP, 230V, 3Ph 2/4P, 7/5.8 Amps
• Prop 65: Cancer and Reproductive Harm
• Solid Rectangle at 45 Degrees (In.): 3-3/16 x 2-19/32
• Solid Rectangle at 90 Degrees (In.): 3-3/16 x 3-3/16
• Solid Round at 45 Degrees (In.): 3-1/2
• Solid Round at 90 Degrees (In.): 3-1/2
• Solid Square at 45 Degrees (In.): 2-19/32 x 2-19/32
• Solid Square at 90 Degrees (In.): 3-1/8 x 3-1/8
• Style (Type): Ferrous
• Tubing Rectangle at 90 Degrees (In.): 4 x 3-3/16
• Tubing Round at 45 Degrees (In.): 3-1/2
• Tubing Round at 90 Degrees (In.): 3-1/2
• Warranty: 2 Year
• Gross Weight: 450.0
• Net weight: 390.0
