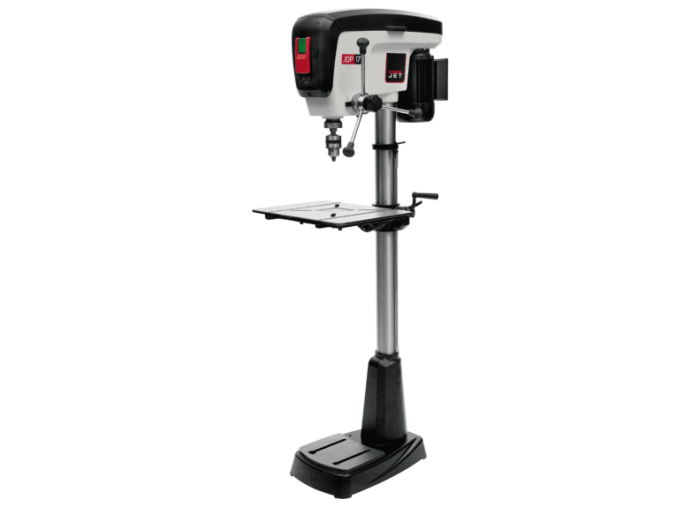

Jet 17" Drill Press JT9-716300

Features

• Integrated depth stop makes repetitive drilling quick and easy
• Large cast iron base provides stability
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
• Replaceable MDF table insert
• Table edge lip designed to make clamping easy
• Xacta-X laser system easily identifies the drill center

Specifications

• Stock Number: JT9-716300
• Assembled Machine Dimensions (L x W x H) (In.): 28-1/2 x 19 x 65
• Chuck Distance to Base (In.): 42-7/8
• Chuck Distance to Table (In.): 25-7/8
• Chuck Size (In.): 5/8
• Column Diameter (In.): 3-5/32
• Model Number: JDP-17
• Motor Power (HP): 3/4
• Number of Spindle Speeds: 16
• Prop 65: Cancer and Reproductive Harm
• Recommended Circuit Size (Amps.): 15
• Spindle Distance to Base (In.): 46-1/2
• Spindle Distance to Table (Max.) (In.): 30
• Spindle Travel (In.): 5
• Style (Type): Floor standing Model
• Swing (In.): 16-7/8
• Table Size (L x W) (In.): 14 x 19
• Warranty: 5 Year
• Gross Weight: 198.0
• Net weight: 187.0
