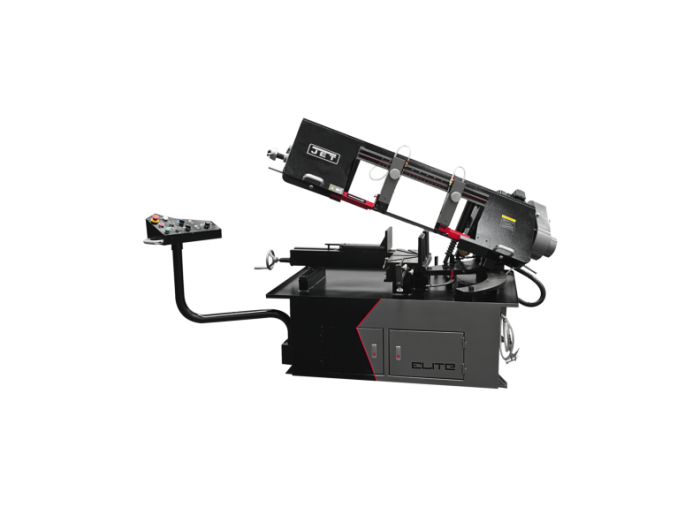

Jet 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise | EHB-1018VMH JT9-891080
A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Designed with heavy-duty construction, these saws reduce vibration and deflection. Mitering and dual mitering saws bring added level of capabilities with dual mitering allowing for compound angle cutting of 60° right and 45° left. All saws come standard with variable speed drive train that allows the operator to fine tune the blade speed fast and easily. Table heights have been optimized, and a completely redesigned swing away control panel. The ELITE swing away panel relocates saw controls to a single location, offering finger-tip Bullets operation of most major saw functions. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
Features
- Adjustable Material Stop
- Automatic blade shut off switch stops the sawing process
- Built-in, self-propelled chip brush prevents chip build up in blade guides
- Hydraulic quick positioning vise for clamping of materials
- Integrated pressurized wash hose for easy machine cleaning
- Large handwheel with blade tensioning gauge accurately measures blade pressure
- Quick positioning vise for clamping of materials
- Semi-automatic bow raises after cut to predetermined height
- To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 in.
- Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
Specifications
- Stock Number: JT9-891080
- Bed Height (In.): 27
- Blade Length (In.): 144
- Blade Speed (SFPM): 53-257
- Blade Speeds (SFPM): 53 - 257
- Blade Wheel Diameter (In.): 14
- Drive: Variable Speed
- Electrics: 2HP, 230/460V/ 3-Ph
- Head Movement (Deg.): 60
- Model Number: EHB-1018VMH
- Motor (HP): 2 HP, 230/460V, 3Ph
- Overall Dimensions (L x W x H) (In.): 85 x 40 x 44
- Overall Height (In.): 44
- Prewired Voltage (V.): 230
- Prop 65: Cancer and Reproductive Harm
- Rectangle at 45 Degrees (In.): 10 x 12
- Rectangle at 60 Degrees (In.): 6 x 5
- Rectangle at 90 Degrees (In.): 10 x 17
- Round at 45 Degrees (In.): 10
- Round at 60 Degrees (In.): 6
- Round at 90 Degrees (In.): 10
- Shipping Weight (Lbs.): 1144
- Square at 45 Degrees (In.): 10 x 10
- Square at 60 Degrees (In.): 5-1/2 x 5-1/2
- Square at 90 Degrees (In.): 10 x 10
- Vise Swivels (Deg.): 45
- Warranty: 3 Year Elite
- Gross Weight: 1210.0
- Net weight: 1100.0
- Blade Size (In.): 1 x .035 x 144
| Brand | Jet |
|---|
Write Your Own Review
Download information Manual
