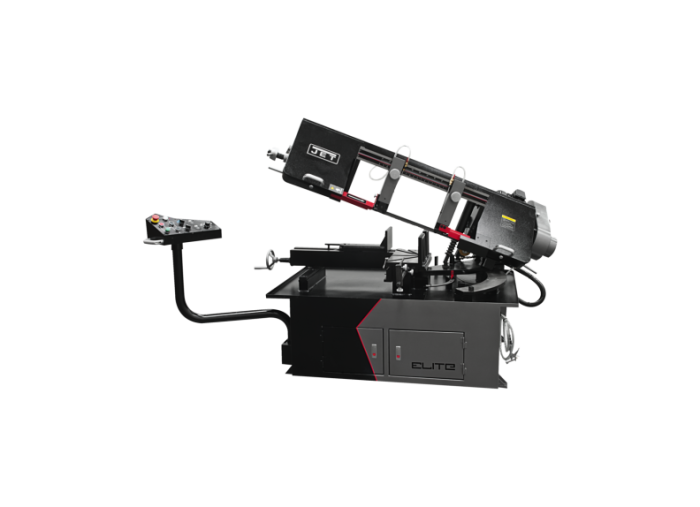

Jet 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw | EHB-1018VM JT9-891070
A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with a variable speed drive train that allows the operator to fine tune the blade speed fast and easily. To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 inches. In addition, the ELITE swing away
panel relocates saw controls to a single location, offering fingertip operation of most major saw functions. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
Features
- Adjustable Material Stop
- Automatic blade shut off switch stops the sawing process
- Built-in, self-propelled chip brush prevents chip build up in blade guides
- Dual mitering allows for compound angle cutting of 60° right and 45° left
- Heavy-duty construction reduces vibration and deflection
- Integrated pressurized wash hose for easy machine cleaning
- Large handwheel with blade tensioning gauge accurately measures blade pressure
- Quick positioning vise for clamping of materials
- Semi-automatic bow raises after cut to predetermined height
- Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
Specifications
- Stock Number: JT9-891070
- Bed Height (In.): 27
- Blade Length (In.): 144
- Blade Speed (SFPM): 53-257
- Blade Speeds (SFPM): 53 - 257
- Blade Wheel Diameter (In.): 14
- Drive: Variable Speed
- Electrics: 2HP, 230/460V/ 3-Ph
- Head Movement (Deg.): 60
- Model Number: EHB-1018VM
- Motor (HP): 2 HP, 230/460V, 3Ph
- Overall Dimensions (L x W x H) (In.): 85 x 40 x 44
- Overall Height (In.): 44
- Prewired Voltage (V.): 230
- Prop 65: Cancer and Reproductive Harm
- Rectangle at 45 Degrees (In.): 10 x 12
- Rectangle at 60 Degrees (In.): 6 x 5
- Rectangle at 90 Degrees (In.): 10 x 17
- Round at 45 Degrees (In.): 10
- Round at 60 Degrees (In.): 6
- Round at 90 Degrees (In.): 10
- Shipping Weight (Lbs.): 1144
- Square at 45 Degrees (In.): 10 x 10
- Square at 60 Degrees (In.): 5-1/2 x 5-1/2
- Square at 90 Degrees (In.): 10 x 10
- Vise Swivels (Deg.): 45
- Warranty: 3 Year Elite
- Gross Weight: 1210.0
- Net weight: 1100.0
- Blade Size (In.): 1 x .035 x 144
| Brand | Jet |
|---|
Write Your Own Review
Download information Manual
