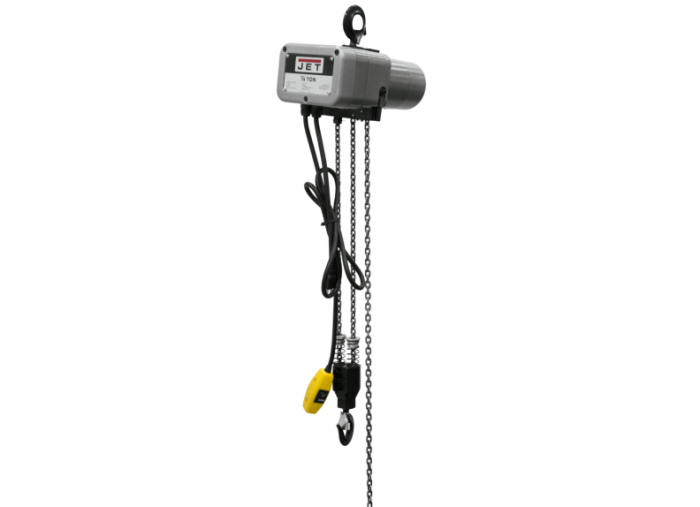

JET® JSH Series Electric Hoists combines safety, durability and portability to operate in light duty commercial and industrial applications. The die cast Aluminum housing keeps the hoist lightweight and easily portable. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They have a built-in thermal overload protection system that keeps the hoist from overheating. The industry proven magnetic disk brake increases safety by ensuring rapid stops and securing the load. The maintenance-free gear train incorporates a sealed oil bath, eliminating maintenance. The JET® JSH Series Electric Hoist is available in 1/8-Ton and 1/4-Ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).
Features
- Aluminum Housing- Aluminum alloy housing decreases the weight for convenient transportation
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
- Heat Treated Gears- Heat treated alloy steel geared drive train for long lasting durability
- JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are not rated or designed for outdoor use or wet environments
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
Specifications
- Stock Number: JT9-110520
- Capacity (Lbs.): 500
- Duty Cycle (%): 25
- Duty Cycle Rating: H3
- Lift (Ft.): 20
- Lifting Speed (FPM): 8
- Load Capacity (Tons): 1/4
- Max. Number of Starts (Per Hr.): 150
- Max. On Time (Min. / Hr.): 15
- Model Number: JSH-550-20
- Motor (HP): 1/6 HP, 115V, 1 Ph
- Motor Phase: 1
- Prop 65: Cancer and Reproductive Harm
- Warranty: 2 Year
- Gross Weight: 44.0
- Net weight: 40.0
- Headroom (In.): 17-1/10
- Overall Width (In.): 8.61
- Motor Current (Amps): 3
| Brand | Jet |
|---|---|
| Warranty | 2 Year |
