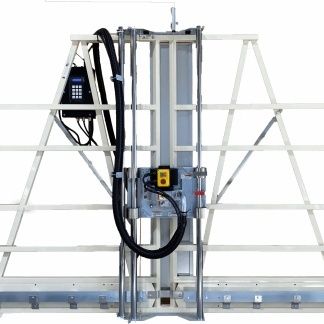

Safety Speed EF5 Tornado Vertical Panel Saw with 120V Motor

The EF5 Vertical Panel Saw is designed for businesses cutting up to 8 hours daily, with multiple operators cutting throughout the day. The maximum crosscut on the EF5 is 64"", with a 1.75"" cut depth and unlimited length rip cut. It includes a dust collection kit, upgraded aluminum rollers, and additional steel welded at a diagonal plane. The EF5 includes dust collection and is ready to connect to your vacuum of choice.

The smart servo motor on the EF5 has been rigorously tested for several years by our engineers and select customers using multiple Safety Speed vertical panel saws in day-to-day operations. The motor can be set between 500 and 5,500 revolutions per minute (RPM), allowing precise cuts based on material and settings. Its smaller frame and lighter weight enable high performance at a lower cost than our 7000, 7400, and 7400XL models that have been in circulation for over 30 years.

Our customers played a key role in identifying improvements during the multi-year development process. The EF5 continuously performed in high-usage environments with multiple operators cutting throughout the day.

• 10 ft. welded steel frame
• Chrome-plated 1 ?"" guide tubes
• 8 Nylatron roller bearing systems
• Adjustable vertical and horizontal rulers
• Quick change from vertical to horizontal cutting
• Thin material pressure guard
• Solid aluminum material rollers
• Enclosed counterweight system
• Integrated dust collection system

• Weight: 598 lbs
• Dimensions: 124 x 17 x 92 in
• Max. Crosscut: 64"" / 1625 mm
• Max. Rip Cut: Unlimited
• Cut Depth: 1 ?"" / 45 mm
• Cut Accuracy: 1/64"" / 0.4 mm
• Frame Length: 120"" / 3050 mm
• Daily Usage: Continuous (8+ Hours)
• Rollers: 14
• Saw Blade Diameter: 8"" / 210 mm
• Motor Amps & Voltage: 20 amp 120 volt
• Motor Horsepower (HP): 3 HP
• Blade RPM: 500-5,500 revolutions per minute
• Dust Collection Kit Diameter: 1.5""
• Country of Origin: United States
