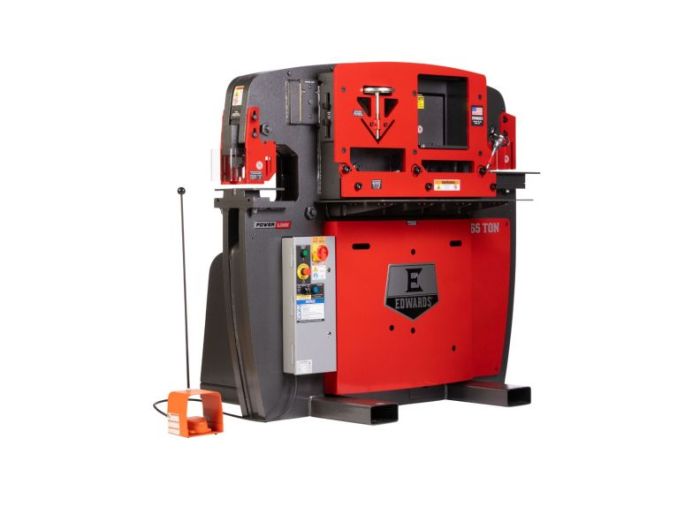

Edwards Ironworker 65 Ton Ironworker 230V 3Ph with PowerLink ED9-IW65-3P230-A

Features

• 3PH 230V power supply for high-demand production environments
• Heavy-duty USA steel construction for durability and stability
• Optimized workstation heights for ergonomic efficiency
• Five Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear, Coper Notcher plus one Open Cavity to customize your ironworker.
• Bright LED lighting in the open style guarding and an illuminated jog button for enhanced visibility
• Integrated Lock-out/Tag-out system to prevent unauthorized operation
• ANSI B11.5-1988(02) compliant guarding for workplace safety

Specifications

• Stock Number: ED9-IW65-3P230-A
• Amps: 22
• Angle Shear Max Capacity 3/8": 5 x 5
• Angle Shear Work Height (In.): 43-1/2
• Coper Notcher Max Capacity (In.): 2-1/2 x 5 x 3/8
• Coper Notcher Work Height (In.): 39-1/2
• Flat Bar Shear Max Capacity 1/2": 14
• Flat Bar Shear Max Capacity 3/8": 24
• Flat Bar Shear Max Capacity (In.): 3/8 x 24, 1/2 x 14, 1x4
• Flat Bar Shear Max Round Capacity (In.): 1
• Flat Bar Shear Max Round (In): 1
• Flat Bar Shear Max Square (In): 1
• Flat Bar Shear Rating (Tons): 65
• Flat Bar Shear Work Height (In.): 34-1/2
• Hydraulic Pump (GPM): 10-1/2
• Hydraulic Reservoir (Gal.): 17
• Hydraulics (GPM): 10-1/2
• Hydraulics (PSI): 3500
• Model Number: IW65-3P230-AC600
• Motor Amps: 22
• Motor (HP): 7.5 HP 3 ~ 230V
• Motor Speed (RPM): 1765
• Overall Dimensions (L x W x H) (In.): 45 x 62-1/8 x 57
• Prop 65: Cancer and Reproductive Harm
• Punch Max Capacity (In.): 1-1/16 diam. in 3/4 mild steel
• Punch Open Height (In): 8-3/4
• Punch Rating (Tons): 65
• Punch Shut Height (In): 6-15/16
• Punch Stroke (In.): 1-13/16
• Punch Work Height (In.): 36-9/16
• Rating (Tons): 65
• Reservoir (Gal.): 17
• Shipping Dimensions (L x W x H) (In.): 46 x 69 x 63
• Valve Pressure (PSI): 3500
• Warranty: 1 Year
• Gross Weight: 4750.0
• Net weight: 4655.0
