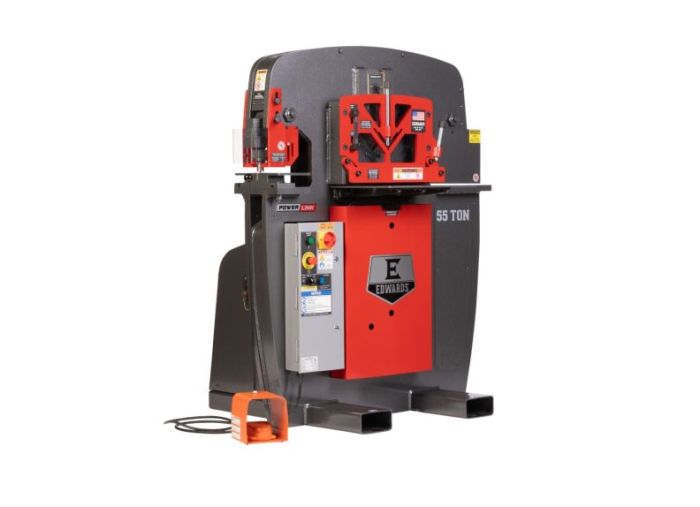

Edwards Ironworker 55 Ton Ironworker 460V 3Ph with PowerLink ED9-IW55-3P460-A
In Stock
SKU
ED9-IW55-3P460-A
$18,269.00
Designed for high-output manufacturing environments, the 55 Ton Ironworker with PowerLink is built to handle large-scale projects with ease. With four workstations and 11 interchangeable attachments, this ironworker is versatile and powerful. The PowerLinkâ„¢ System enhances efficiency by converting the unit into a power source for hydraulic tools. Enhanced safety and precision come from features like bright LED lighting, an open-style guard, and an illuminated jog button.
Features
- 3PH 460V power supply for heavy-duty industrial applications
- Adjustable electric stroke control for fine-tuned performance
- Optional accessories available to further increase precision
- Optimized workstation heights to maximize efficiency
- Integrated E-Stop and Lock-out/Tag-out features for enhanced safety
- ANSI B11.5-1988(02) compliant guarding for operator protection
- ETL/UL Approved Controls ensure safety and compliance
Specifications
- Stock Number: ED9-IW55-3P460-A
- Amps: 7
- Angle Shear Max Capacity 1/4": 4 x 4
- Angle Shear Work Height (In.): 39-7/8
- Flat Bar Shear Max Capacity 1/2": 12
- Flat Bar Shear Max Capacity 3/4": 4
- Flat Bar Shear Max Capacity (In.): 3/8 x 14, 1/2 x 12, 3/4 x 4
- Flat Bar Shear Max Round (In): 7/8
- Flat Bar Shear Max Square (In): 7/8
- Flat Bar Shear Rating (Tons): 55
- Flat Bar Shear Work Height (In.): 34-1/2
- Hydraulic Pump (GPM): 3-1/2
- Hydraulics (GPM): 3-1/2
- Hydraulics (PSI): 2500
- Model Number: IW55-3P460-AC500
- Motor Amps: 7
- Motor (HP): 5 HP 3 ~ 460V
- Motor Speed (RPM): 1725
- Open Station Open Height (In): 8-1/8
- Open Station Shut Height (In): 6-7/8
- Open Station Stroke (In): 1-1/4
- Open Station Throat Depth (In): 11-3/16
- Open Station Work Height (In): 34-1/2
- Open Workstation Throat Depth (In.): 11-3/16
- Open Workstation Work Height (In.): 34-1/2
- Optional Coper Notcher Work Height (In.): 39-1/2
- Overall Dimensions (L x W x H) (In.): 36-1/8 x 44-3/8 x 55-1/4
- Product Dimensions (In.): 44-3/8 x 36-1/8 x 55-1/4
- Prop 65: Cancer and Reproductive Harm
- Punch Max Capacity (In.): 1-1/16 diam. in 5/8 mild steel
- Punch Open Height (In): 8-1/8
- Punch Rating (Tons): 55
- Punch Shut Height (In): 6-7/8
- Punch Stroke (In.): 1-1/4
- Punch Throat Depth (In.): 7-1/2
- Punch Work Height (In.): 36-9/16
- Rating (Tons): 55
- Reservoir (Gal.): 7
- Shipping Dimensions (L x W x H) (In.): 45 x 51 x 62
- Valve Pressure (PSI): 2750
- Warranty: 1 Year
- Gross Weight: 2480.0
- Net weight: 2430.0
| Brand | Edwards Ironworker |
|---|---|
| Sizes | 55 Ton |
| Warranty | 1 Year |
| Tool Type | Metal |
| Power | 3 Phase |
